Description

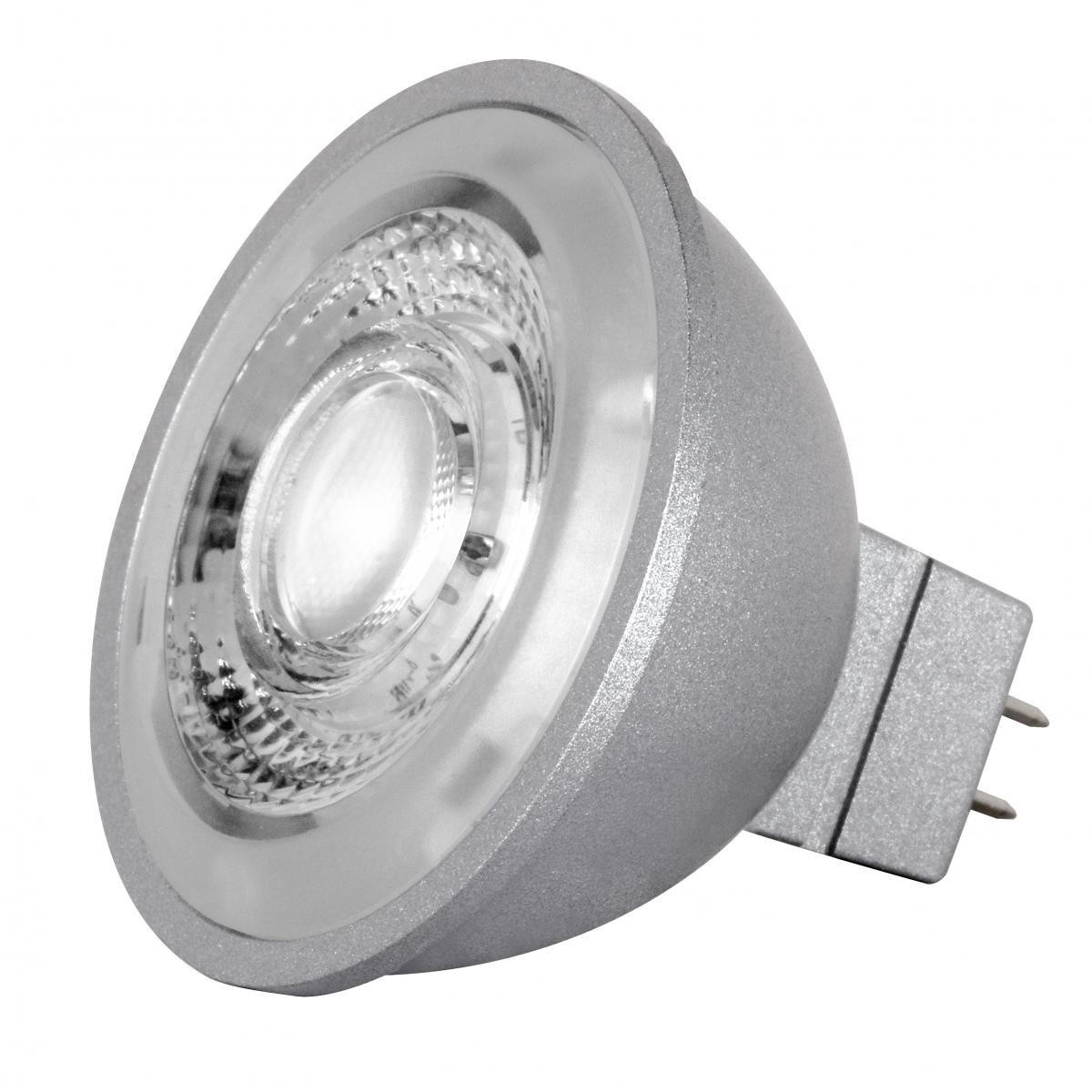

8MR16/LED/40'/40K/90CRI/12V Compact MR16 LED Spotlight | Cool White | GU5.3 Bi-Pin | 12V Dimmable | 40° Flood Beam
Upgrade accent and display lighting with this efficient, low-voltage MR16. The 8W LED design delivers crisp, Cool White illumination with 90+ CRI, fits standard GU5.3 sockets, and is rated for enclosed fixtures—making retrofits fast while reducing maintenance and energy costs.
KEY FEATURES:
- Clean, Accurate Color: 90+ CRI enhances merchandise and finishes.
- Targeted Illumination: 40° beam provides precise accent and task lighting.
- Dimmable Performance: Works on 12V systems; check transformer/driver for compatibility.
- Versatile Use: Enclosed-fixture rated and damp-location suitable for broader applications.
- Energy Conscious: ENERGY STAR listed with dependable, long-life operation.
APPLICATIONS:
- Retail display cases and shelf highlights
- Gallery and museum accent lighting
- Under-cabinet and niche fixtures
- Tip: Use with compatible 12V electronic or magnetic transformers for best dimming results
SPECIFICATIONS:
- Wattage: 8W
- Lumens: 490
- Color Temperature: 4000K
- CRI: 90+
- Beam Angle: 40°
- CBCP: 1175 cd
- Dimmable: Yes
- Voltage: 12V
- Base Type: GU5.3 (Bi Pin)
- Shape: MR16
- Lens: Clear; Lensed Lamp
- Housing Color: Gray
- Power Factor: 0.9
- Operating Temperature: -25C (-13F) to +45C (+113F)
- MOL: 1.850 in
- MOD: 1.969 in
- Location Rating: Damp
- Enclosed Fixture Rated: Yes
- Lifespan: 25,000 hours
- Weight: 0.08 lb
- Warranty: 5 Year Limited - 10 hr per day
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cULus Listed
- ENERGY STAR: Yes (ESID-2346050)
- California Compliance: Title 24 JA8 Listed; T20 Listed
- RoHS Compliant: Yes
- FCC Compliant: Yes
