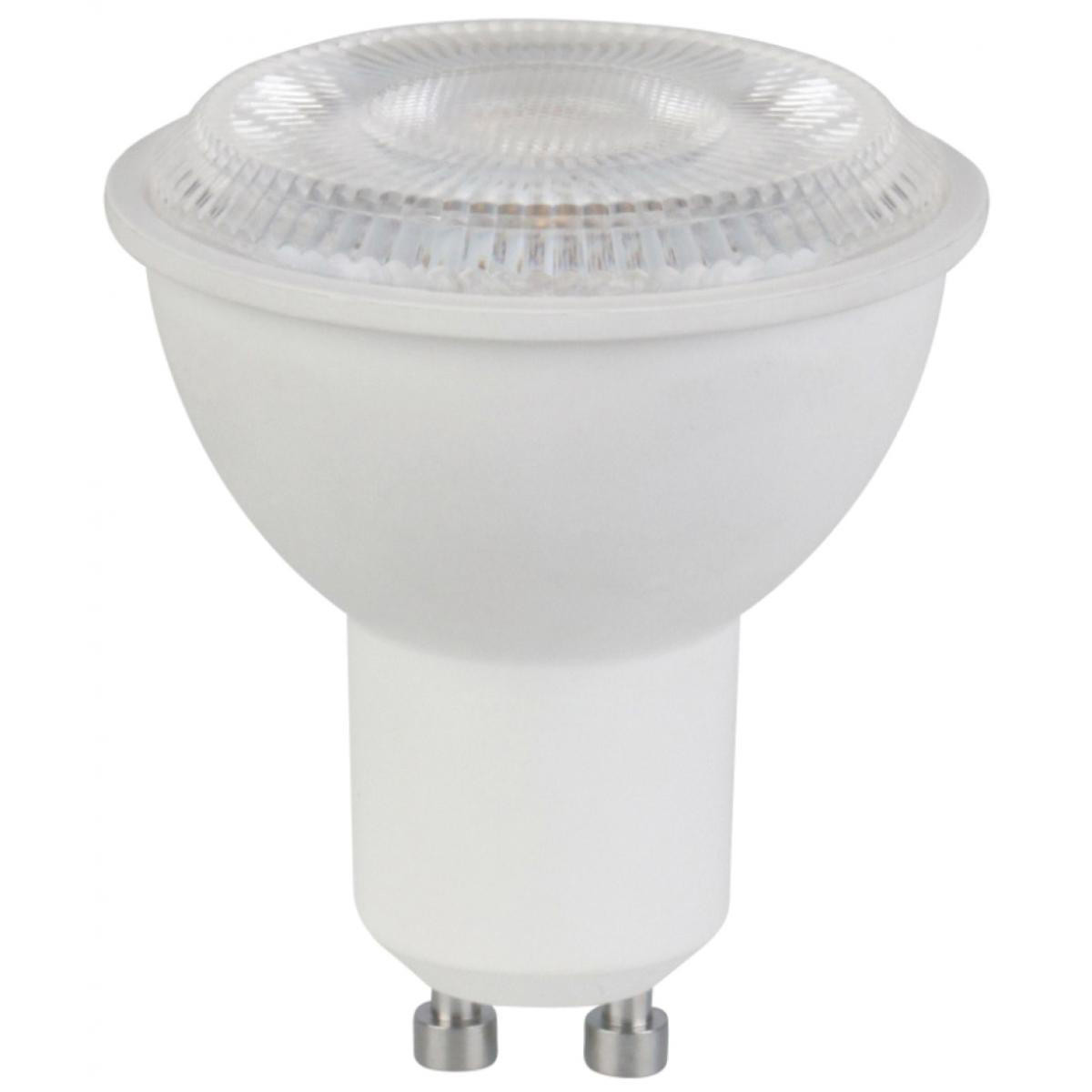

6.5MR16/LED/25'/30K/120V/GU10 Compact GU10 MR16 LED Spotlight | Soft White | Dimmable Narrow Flood Beam | Enclosed Fixture Rated
Upgrade accent lighting with a compact, high-output MR16 that installs quickly in GU10 sockets and delivers precise, comfortable illumination. This lamp replaces hot, short-life halogens with cool-running, energy-saving LED performance, provides smooth dimming on common phase controls, and is rated for use in enclosed fixtures to simplify maintenance in tight or sealed housings.
KEY FEATURES:
- Quick Retrofit: GU10 twist-lock base swaps in for legacy halogens with no rewiring.
- Focused Accents: 25° narrow flood with 1100 CBCP draws attention to products and artwork.
- Smooth Control: Compatible with forward/reverse phase and triac dimmers for flicker-free dimming.
- Lower Heat, Less Maintenance: 6.5W LED replaces 50W halogen and lasts up to 25,000 hours.
- Versatile Use: Safe for enclosed fixtures and damp locations.
APPLICATIONS:
- Retail displays and merchandise highlighting
- Hospitality lobbies, corridors, and lounges
- Residential track heads and recessed ceiling cans
- Tip: Use dimming to fine-tune focal lighting without glare or hot spots
SPECIFICATIONS:
- Wattage: 6.5W
- Incandescent Equivalent: 50W
- Voltage: 120V
- Shape: MR16
- Base: GU10
- Finish / Housing Color: White
- Color Temperature: 3000K
- CRI: 80
- Lumens: 500
- Beam Spread: 25° (NFL - Narrow Flood)
- CBCP: 1100
- Dimmable: Yes (Forward Phase, Reverse Phase, Triac)
- Operating Frequency: 60 Hz
- Power Factor: 0.92
- Operating Temperature: -25°C (-13°F) to +45°C (+113°F)
- MOL: 2.28
- MOD: 1.97
- Lensed: Lensed Lamp
- Lens Finish: Array
- Weight: 0.1 lb.
- Rated For Enclosed Fixture: Yes
- Hours Rated: 25,000
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cULus
- Location Rating: Damp
- RoHS Compliant: Yes
- FCC Compliant: Yes
- Energy Star: No
- California Status: Lawful for sale
- Warranty: 5-year limited (10 hr per day)
