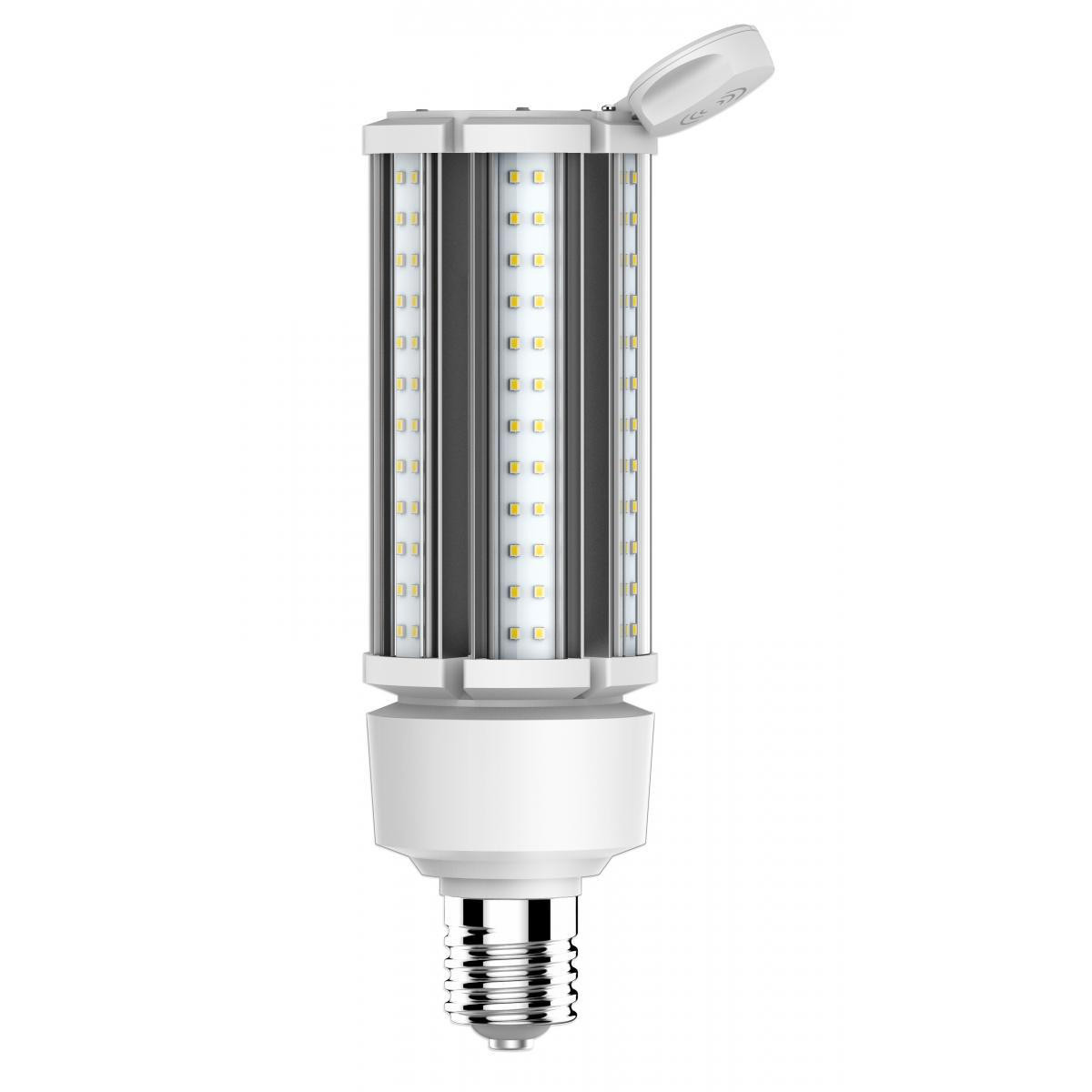

63W/LED/HID/3K/MS/100-277V Motion-Sensing LED HID Retrofit Corn Lamp | Soft White | Ballast Bypass Direct Wire
Accelerate HID-to-LED upgrades with this motion-sensing corncob lamp that installs via direct wire and eliminates ballast failures. Ideal for boosting safety and cutting energy in commercial and industrial spaces, it delivers warm, comfortable illumination and dependable performance in enclosed, damp-rated fixtures.
KEY FEATURES:
- Built-In Motion Sensing: Occupancy-triggered lighting reduces wasted energy; 32 ft detection with 30-second auto-off.
- Simple Retrofit: Ballast-bypass, direct-wire operation removes HID ballast maintenance.
- Broad, Even Light: 300-degree distribution enhances coverage in high-bay and area fixtures.
- Durable Performance: Enclosed-fixture rated with damp-location suitability and wide operating temps.
- Reliable Power: Built-in surge protection and >0.9 power factor for steady operation.
- Universal Orientation: Works in any burning position for flexible installation.
APPLICATIONS:
- Warehouses and distribution centers
- Parking garages and canopy fixtures
- Post-top and area lights
- Tip: Use the built-in motion sensor to reduce energy use during low-traffic periods.
SPECIFICATIONS:
- Wattage: 63W
- Lumens: 7,875
- HID Equivalent: 250W
- Color Temperature: 3000K (Warm White)
- CRI: 80+
- Beam Spread: 300°
- Base: E39 Mogul
- Voltage: 100–277V
- Dimmable: Non-Dimmable
- Ballasting Requirements: Ballast bypass (direct wire only)
- Operating Frequency: 50/60Hz
- Power Factor: >0.9
- Burning Position: Universal
- Rated For Enclosed Fixture: Yes
- Motion Sensor: Built-in; 32 ft detection; 30-second turn off
- IP Rating: IP42
- Location Rating: Damp
- Operating Temperature: -30C (-22F) to +60C (+140F)
- Lens Finish: Clear
- Finish: Clear
- Housing Color: White
- MOL: 10.88 in
- MOD: 3.38 in
- Minimum Compartment Size: L 11 in; W 8 in; D 8 in
- Hours Rated: 50,000
- Shape: Corncob
- Lamp Type: Corncob
- Technology: LED
- Safety Listing: cUL Classified; cUL Certified
- Compliance: RoHS; FCC
- Warranty: 5 Year Limited - Hi-Pro
