Description

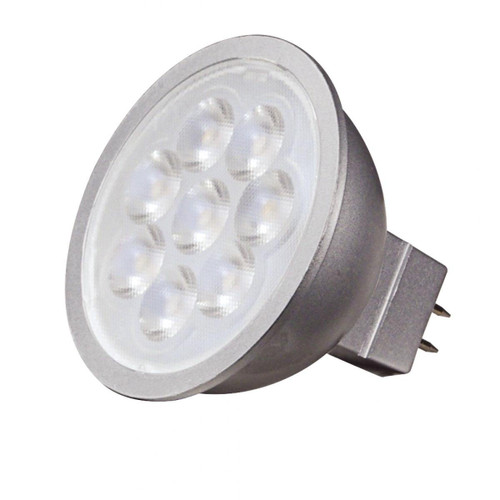

6.5MR16/LED/40'/40K/12V Compact MR16 LED Flood Light | Cool White | 12V GU5.3 Bi-Pin | 40° Beam | Dimmable Retrofit
Upgrade from hot, short-lived halogen to a cool-running, energy-saving MR16 that installs quickly into existing low-voltage fixtures. Delivering crisp, neutral Cool White illumination with smooth dimming, this lamp reduces maintenance while maintaining consistent beam quality in accent and display lighting.
KEY FEATURES:
- Energy Saving: Uses only 6.5W while achieving 50W halogen performance.
- Focused Illumination: 40° beam provides balanced accent lighting without harsh hot spots.
- Reliable Operation: Enclosed fixture rated and damp-location suitable for broader applications.
- Smooth Dimming: Compatible with select 12V transformers for tailored ambiance.
- Durable Build: Clear lens and robust housing ensure consistent output over 25,000 hours.
APPLICATIONS:
- Retail displays and merchandising
- Track and recessed accent lighting
- Hospitality, lobbies, and galleries
- Usage Tip: Aim the 40° beam to highlight focal points while minimizing glare.
SPECIFICATIONS:
- Wattage: 6.5W
- Incandescent Equivalent: 50W
- Voltage: 12V
- Shape: MR16
- Base: Bi Pin GU5.3 (ANSI GU5.3)
- Color Temperature: 4000K (Cool White)
- CRI: 80
- Lumens: 500
- Beam Spread: 40°
- Dimmable: Yes
- Dimming Note: Check the transformer/driver MFG for dimmer compatibility
- Power Factor: 0.93
- Center Beam Candlepower (CBCP): 1060
- Operating Temperature: -25C (-13F) to +45C (+113F)
- MOL: 1.772
- MOD: 1.969
- Lensed: Lensed Lamp
- Lens Finish: Clear
- Housing Color: Gray
- Weight: 0.08 lb.
- Rated For Enclosed Fixture: Yes
- Hours Rated: 25,000
- Warranty: 5 Year Limited - 10 hr per day
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cULus Listed
- Location Rating: Damp
- Energy Star: Yes (ESID-2278515)
- California Title 20/24: Lawful for sale
- RoHS Compliant: Yes
- FCC Compliant: Yes
