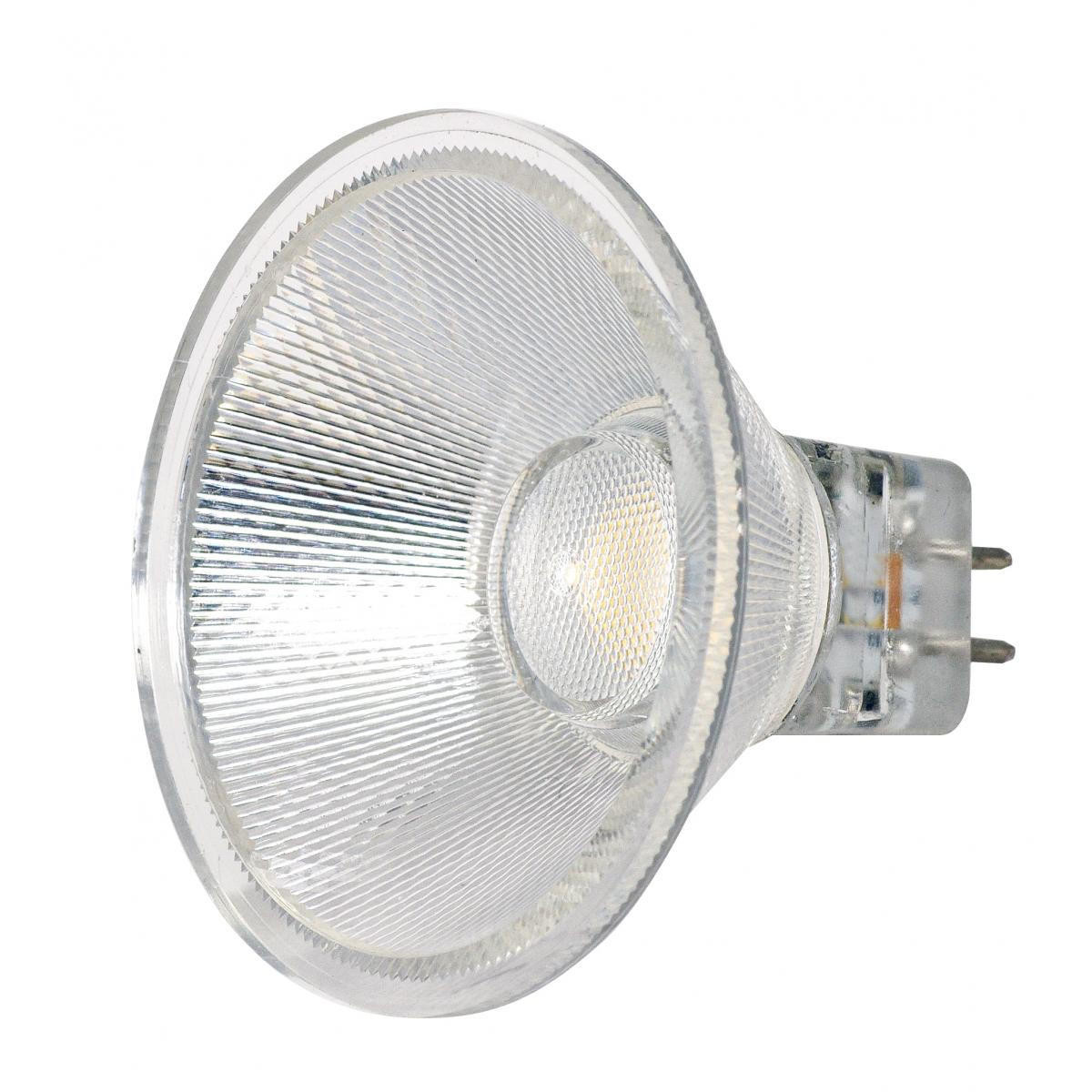

3MR16/LED/40'/3000K/12V Compact 12V MR16 LED For Track And Recessed Lighting | Soft White | Dimmable, Enclosed Rated, 40° Beam
Upgrade accent and task lighting with an efficient, low-heat MR16 that installs easily in 12V fixtures. This dimmable LED delivers clean, Soft White illumination with a precise 40° beam, reducing maintenance thanks to long service life and enclosed-fixture compatibility.
KEY FEATURES:
- Focused Illumination: 40° beam angle highlights merchandise, art, and architectural details.
- Smooth Dimming: Works with forward phase, reverse phase, or triac controls for scene setting.
- Low-Voltage Ready: Designed for 12V MR16 sockets with GU5.3 bi-pin base.
- Enclosed Fixture Rated: Safe for use in enclosed luminaires for broader application flexibility.
- Reduced Maintenance: Long 25,000-hour rating cuts relamping frequency in busy spaces.
APPLICATIONS:
- Retail displays and vitrines requiring precise accent lighting.
- Hospitality sconces and track heads in lobbies and corridors.
- Residential recessed and decorative low-voltage fixtures.
- Usage Tip: Dim to soften ambience or raise output for task focus.
SPECIFICATIONS:
- Wattage: 3W
- Voltage: 12V
- Shape: MR16
- Base: Bi Pin GU5.3 (ANSI GU5.3)
- Finish: Clear
- Color Temperature: 3000K (Warm White)
- CRI: 80
- Lumens: 330
- Beam Spread: 40°
- Dimmable: Yes
- Dimming Type: Forward Phase, Reverse Phase, or Triac
- Operating Temperature: -20°C (-4°F) to +45°C (+113°F)
- MOL: 2
- MOD: 2
- Lensed: Lensed Lamp
- Lens Finish: Clear
- Housing Color: Silver
- Enclosed Fixture Rated: Yes
- Lamp Type: MR
- Technology: LED
- Hours Rated: 25,000
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cULus
- Location Rating: Damp
- Energy Star: No
- California Status: Lawful for sale
- RoHS Compliant: Yes
- FCC Compliant: Yes
- Warranty: 3-year limited
