Description

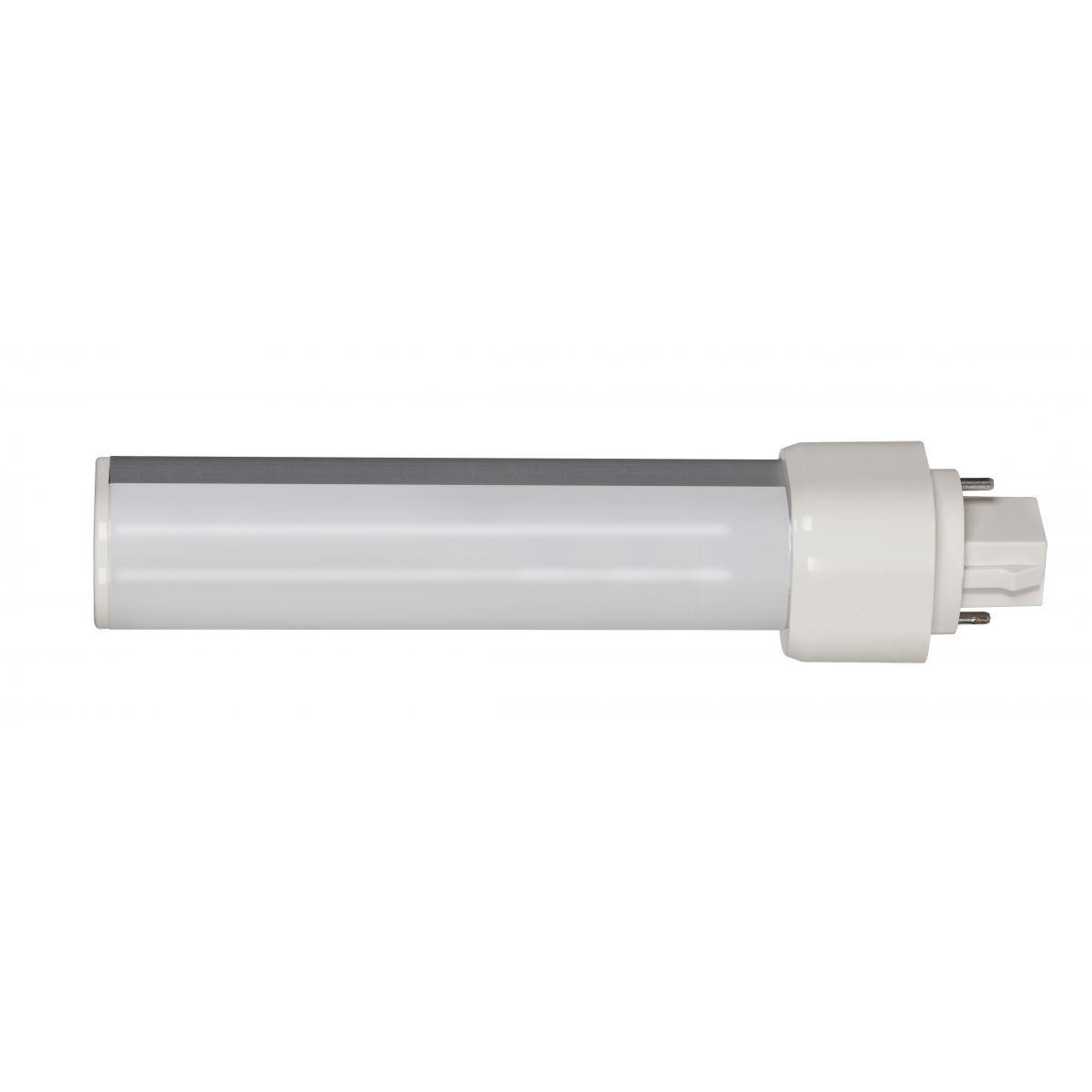

9WPLH/LED/835/DR/2P Compact PL LED Replacement Lamp | Ballast-Compatible Type A | G24d 2-Pin Horizontal | Easy Retrofit
Upgrade existing CFL fixtures without rewiring. This ballast-compatible PL LED installs quickly in 2-pin G24d sockets, delivers balanced neutral light, and cuts maintenance with long-life performance—a fast, reliable retrofit for commercial spaces.
KEY FEATURES:
- Quick Swap: Plug-and-play with compatible ballasts for minimal downtime.
- Right Fit: G24d 2-pin base and horizontal orientation match common CFL fixtures.
- Comfortable Output: Neutral 3500K light supports productive environments.
- Maintenance Saver: 50,000-hour life reduces relamping cycles.
- Durable Design: Enclosed fixture rated and suitable for damp locations.
- Consistent Illumination: Frosted finish with 120° beam provides even coverage.
- Reliable Operation: Non-dimmable design ensures steady performance.
APPLICATIONS:
- Offices and administrative areas
- Hospitality corridors and lobbies
- Retail aisles and back-of-house areas
- Usage Tip: Verify electronic ballast compatibility before installation
SPECIFICATIONS:
- Watts: 9W
- Fluorescent Equivalent: 26W
- Volts: Ballast Dependent
- Ballast Type: Type A (Ballast Required)
- Shape: PL
- Base: G24d (2-Pin)
- Finish: Frost
- Color Temperature: 3500K
- CRI: 80+
- Lumens: 850
- Beam Spread: 120°
- Dimmable: No
- Hours Rated: 50,000
- Operating Position: Horizontal
- Operating Frequency: 60Hz
- Power Factor: 0.83
- Operating Temperature: -20°C (-4°F) to +45°C (+113°F)
- MOL: 6.63 in
- MOD: 1.09 in
- Housing Color: White
- Rated For Enclosed Fixture: Yes
- Location Rating: Damp
- Warranty: 5-Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Listing: cULus Classified
- DLC Approved: No
- California Title 20/24: Lawful for sale
- State Compliance: Lawful for sale in CO, HI, NV, VT, WA
- RoHS Compliant: Yes
- FCC Compliant: Yes
