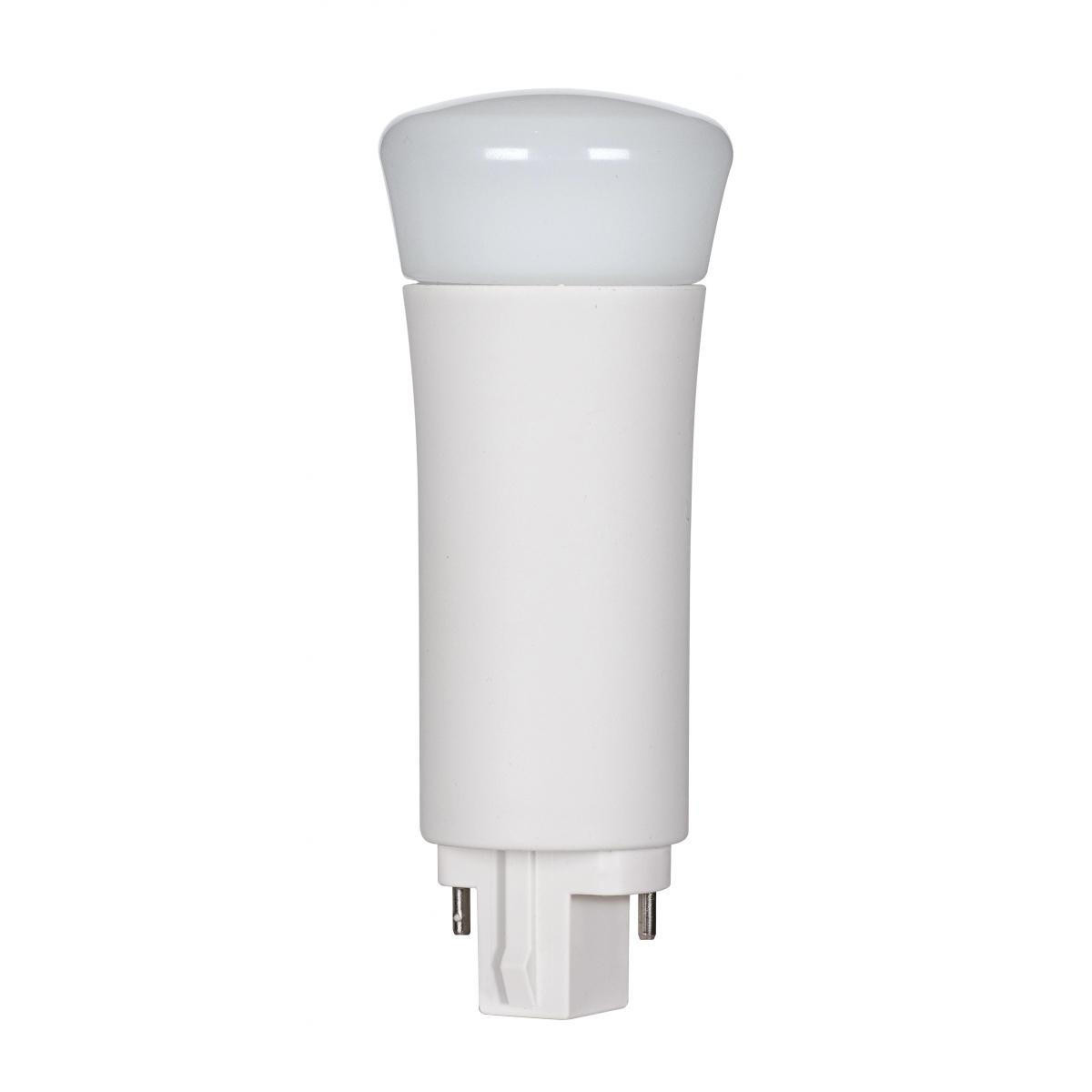

9WPLV/LED/830/DR/2P High-Output PL LED Retrofit | Soft White | G24d 2-Pin Base | Type A Ballast Compatible | Vertical Mount Design
Upgrade compact fluorescent fixtures without rewiring using this plug-and-play LED PL lamp. Delivering comfortable Soft White illumination and designed for 2-pin G24d sockets, it works with existing ballasts and helps reduce maintenance with a long 50,000-hour rated life.
KEY FEATURES:
- Plug-and-Play: Type A operation uses existing ballasts for fast retrofits.
- Comfortable Light: Soft White output enhances occupant comfort in work and hospitality spaces.
- Easy Fit: G24d 2-pin base for vertical PL sockets with broad 120 beam spread.
- Low Maintenance: 50,000-hour life minimizes relamping and downtime.
- Durable Build: Frosted finish and damp-location rating for dependable performance.
APPLICATIONS:
- Offices and corporate workspaces
- Hospitality corridors and lobbies
- Retail aisles and back-of-house areas
- Usage Tip: Confirm ballast compatibility and install in vertical orientation.
SPECIFICATIONS:
- Wattage: 9W
- Fluorescent Equivalent: 26W
- Operation: Type A (ballast required)
- Lamp Type: PL
- Base: G24d 2-Pin
- Finish: Frost
- Color Temperature: 3000K (Warm White)
- CRI: 82
- Lumens: 850
- Beam Spread: 120
- Dimmable: No
- Rated Life: 50,000 hours
- Burning Position: Vertical Operation
- Operating Temperature: -20C (-4F) to +45C (+113F)
- MOL: 4.69
- MOD: 1.91
- Housing Color: White
- Safety Listing: cULus Classified
- Location Rating: Damp
- Energy Star: No
- California Status: Lawful for sale
- RoHS Compliant: Yes
- Warranty: 5 Year Limited - 10 hr per day
