Description

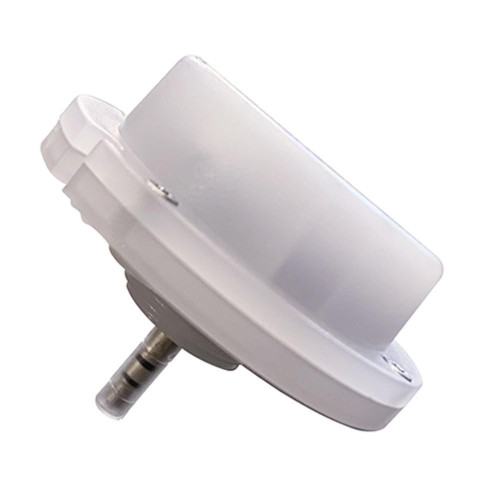

Bi-Level Microwave Motion Sensor for High Bay Lighting | 12–24VDC | 0–10V Output
The Sharkward ANT-5-4T is a compact bi-level microwave motion sensor engineered for high-bay lighting applications requiring automatic switching and stepped dimming control. Operating on 12–24VDC, it uses 5.8GHz microwave detection to sense movement even through thin materials. With adjustable timing, sensitivity, daylight thresholds, and multi-stage dimming profiles, the sensor enables seamless energy-saving automation while maintaining occupant comfort. The low-profile housing installs inside most high-bay fixtures and supports IP65 protection for demanding environments.
Product Specifications
- Power supply: 12–24VDC, >50mA
- Dim control output: 0–10V, max 25mA sinking current
- HF system: 5.8GHz ± 75MHz microwave sensing technology
- Transmission power: <20mW
- Detection radius: 20% / 50% / 75% / 100% (approx. 26–49 ft) depending on setting
- Time settings: 10s / 1min / 5min / 10min / 15min / 20min / 30min / 60min
- Light-control levels: 24Hr / 10Lux / 30Lux / 50Lux
- Operating temperature: -4°F to +140°F (-20°C to +60°C)
- IP rating: IP65 outdoor-rated housing
- Mounting height: 13–50 ft
Benefits
- Bi-level microwave sensing allows soft transitions between high mode and standby
- Detects motion through plastic fixture housings for wide coverage
- Corridor Function enables tri-level control for energy-efficient operation
- Adjustable dim levels, hold times, daylight sensing thresholds, and detection range
- Stable performance in extreme temperatures from -4°F to 140°F
- IP65 enclosure protects against dust and moisture
- Compatible with remote control (RC-100) for fast commissioning
Applications
- High-bay LED fixtures
- Warehouses and distribution centers
- Gymnasiums and recreational facilities
- Industrial and manufacturing environments
- Parking structures and corridors
- Large indoor spaces needing extended motion coverage
Options
Downloads
Equal Replacement
- Orion Lighting NT-5-4T
- Brilliant NT-5-4T
- LEDone LOC-NT-5-4T
