Description
Microwave Motion Sensor | 10–14V DC | 0–10V Output | 12 ft Radius | Commercial Occupancy Control

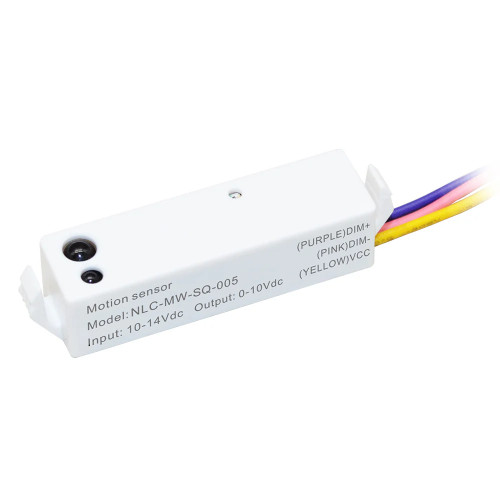

Sharkward NLC-MW-SQ-005 is a low-voltage microwave bi-level sensor designed for 360° occupancy detection with a maximum 12-foot radius. It operates on a 5.8GHz HF system, provides a 0–10V dimming output up to 25mA, supports daylight harvesting when paired with the RC-100 remote, and delivers stable performance from –40°F to +158°F. This compact sensor integrates seamlessly with dimming ballasts or LED drivers for reliable bi-level lighting control.
Product Specifications
- Power supply: 10–14V DC, >50mA
- HF system: 5.8GHz ± 75MHz
- Dim output: 0–10V, max 25mA sinking current
- Detection radius/angle: Max 12 ft (4m) / 360° coverage
- Mounting height: Max 12 ft (illustrated on page 1)
- Remote range: 50 ft (15m) indoor, non-blocked line of sight
- High-frequency output: <0.2mW (safe, extremely low-power)
- Humidity: Max 95% RH
- Operating temperature: –40°F to +158°F
- Daylight harvesting: enabled only via RC-100 remote
- Function settings: brightness 100%, sensitivity 100%, hold time 30 min, standby dim 30%, standby time 1 min
- Wiring: compatible with dimming ballast or LED driver
Benefits
- Low-voltage microwave sensing offers faster, more reliable detection than infrared.
- Full 360° coverage with a 12 ft detection radius improves responsiveness in open or obstructed areas.
- Bi-level 0–10V output integrates with LED drivers for energy-saving dimming control.
- Extremely low HF output (<0.2mW) ensures safe operation—far below mobile device emissions.
- Wide temperature tolerance from –40°F to +158°F supports harsh-condition installations.
- Optional RC-100 remote enables wireless programming and daylight harvesting adjustments.
- Compact design makes installation easy in fixtures, ceilings, or sensor compartments.
Applications
- Stairwells
- Corridors and hallways
- Parking garages and maintenance areas
- Offices and workspaces
- Storage rooms and utility areas
- Low-voltage commercial lighting systems
- Any space requiring bi-level occupancy lighting control
