Description

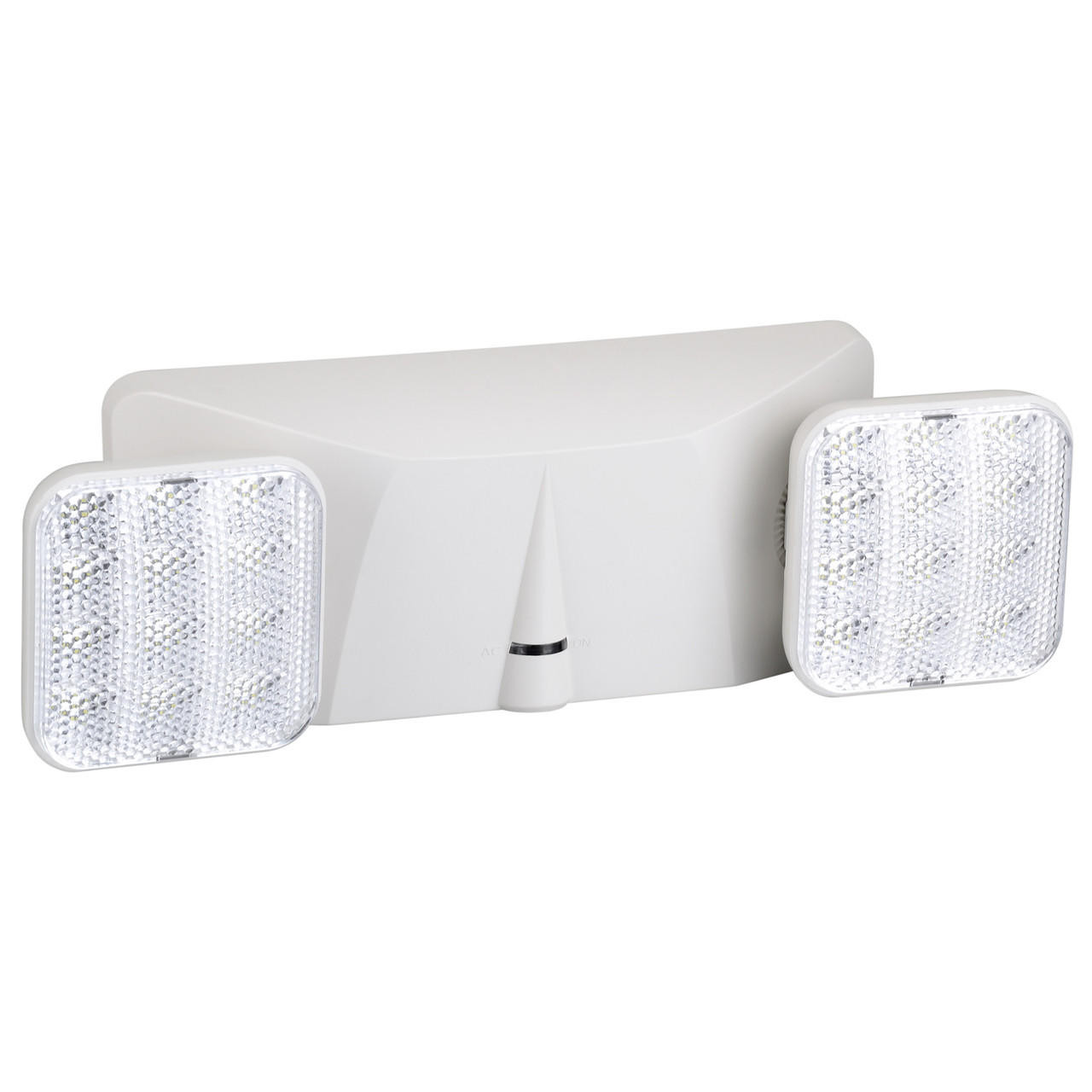

EMER/LED/2H Dual-Head Emergency Unit | Bright Daylight (6500 K) Wall/Ceiling Mount, 90-Minute Runtime, UL Listed
Built to provide dependable, maintenance-free emergency illumination for corridors, stairwells, and common areas, this compact dual-head unit delivers bright daylight output and automatic backup power to guide occupants during outages. Integrated LEDs and a 90-minute battery system ensure reliable, low-energy performance while the adjustable heads let you direct light exactly where it's needed.
KEY FEATURES:
- Dual Adjustable Heads: Independently aimed lamps provide targeted coverage for exits and pathways.
- Integrated LED Source: Energy-efficient built-in LEDs deliver bright 180 lumen output at Daylight color tone.
- Reliable Backup: Internal batteries automatically charge and provide up to 90 minutes of emergency runtime.
- Compact, Durable Housing: Flame-retardant, high-impact thermoplastic construction in white for low-maintenance use.
- Simple Installation: Designed for wall or ceiling mounting on 120-277V service with built-in test switch and status indicator.
APPLICATIONS:
- Ideal for corridors, stairwells, and exit pathways in commercial and multi-family buildings.
- Suitable for offices, retail backrooms, and utility spaces requiring code-compliant emergency lighting.
- Great for apartment common areas, service rooms, and interior egress points.
- Installation Tip: Mount near exits and adjust heads to eliminate dark spots along escape routes.
SPECIFICATIONS:
- Wattage: 2.4W
- Lumens: 180
- Color Rendering Index (CRI): 70
- Color Temperature: 6500K
- Voltage: 120-277V
- Number of Lights: 2
- Mounting: Wall or Ceiling
- Use Location: Indoor
- Lens Material: Plastic
- Material/Finish: White Thermoplastic Housing
- Item Dimensions (in): W 10.11 x H 4.29 x D 3.46
- Warranty: 2 Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Listed
- Compliance: CEC Title 20 Compliant
- Location Rating: IP20 / Indoor
