Description

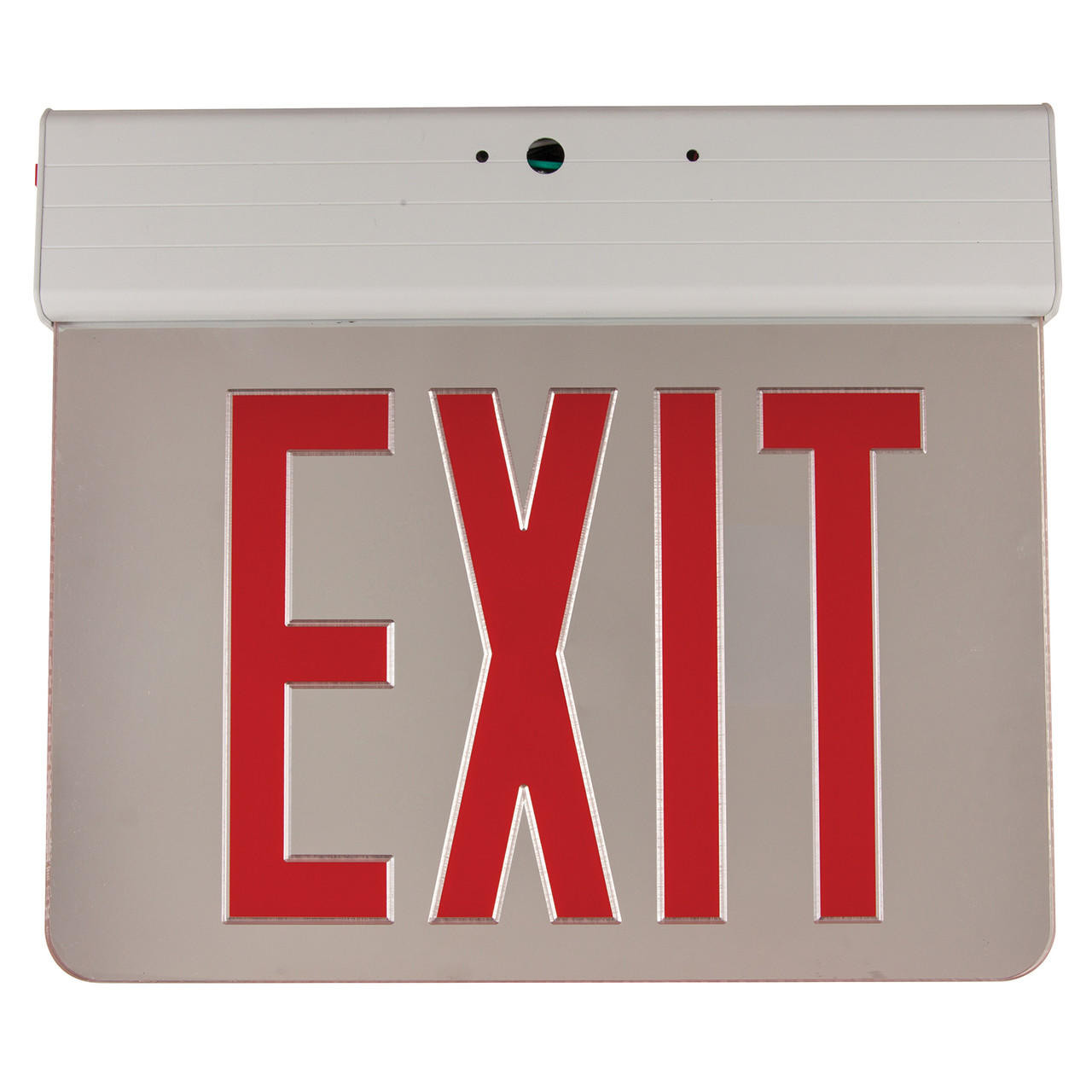

EXIT/LED/EDGE/SU/2F/WH/MI/EM/NYC Edge-Lit Emergency Exit Fixture, Mirrored Panels, 90-Min Battery Backup And Universal Mount
Engineered for quick installation and low visual impact, this slim Sunlite edge-lit emergency fixture combines high-visibility red lettering and mirrored panels to provide clear egress guidance while preserving interior aesthetics in commercial and public spaces.
KEY FEATURES:
- Compact Profile: Slim die-cast aluminum housing and edge-lit acrylic panel for a low-profile appearance that fits unobtrusively in corridors and lobbies.
- Reliable Emergency Power: Built-in 3.6V/600mAH Ni-CD battery supplies a 90-minute backup for uninterrupted illumination during outages.
- High Visibility: Ultra-bright red LEDs with mirrored panels provide bold, easily seen EXIT lettering visible up to 200 meters.
- Flexible Installation: Universal mounting allows back, side, or top installation and field-installable directional arrows for easy configuration.
- Energy Efficient: Low power draw (3.2W) reduces ongoing energy costs while delivering compliant emergency lighting.
APPLICATIONS:
- Ideal for commercial buildings, retail centers, and multi-tenant office complexes.
- Well suited for schools, healthcare facilities, and hospitality common areas.
- Perfect for corridors, stairwells, and entry/exit pathways requiring code-compliant signage.
- Tip: Use field-installable arrows to point the escape route during final on-site mounting.
SPECIFICATIONS:
- Finish: White
- Mounting: Surface
- Fixture Technology: EXIT
- Use Location: Indoor
- Power Consumption: 3.2W
- Voltage: 120-277V
- Battery: 3.6V/600mAH Ni-CD, 90-minute backup
- Visibility: Up to 200 meters
- Operating Temperature: -0°C to 40°C
- Housing: Die-cast aluminum with double mirrored acrylic panel
- Package Dimensions (in): W 13 x H 2.5 x D 16
- Package Weight (lb): 5.25
- UPC: 653703052786
CERTIFICATIONS & ADDITIONAL NOTES:
- Code Compliance: NYC Compliant and compliant in all 50 states
- Location Rating: Suitable for damp locations
