Description

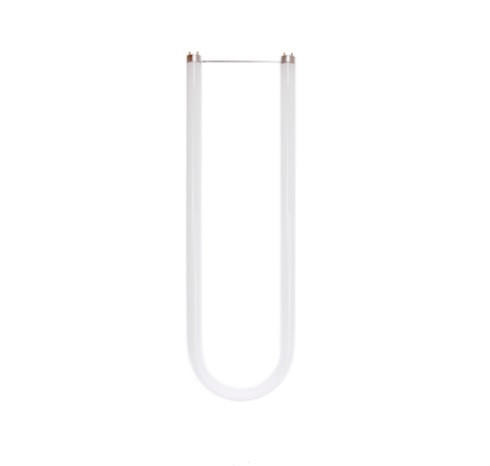

T8/LED/HY/6U/15W/3SCT Hybrid U-Bend LED Tube | CCT Selectable Versatile Retrofit For Offices, Schools, And Retail
Engineered to simplify upgrades of U‑bend fluorescent fixtures, this hybrid Sunlite LED T8 tube provides a fast retrofit path with either plug‑and‑play or ballast‑bypass installation. It delivers efficient, tunable white light while reducing maintenance and improving fixture longevity in commercial and institutional settings.
KEY FEATURES:
- Hybrid Installation: Universal Type A+B design supports plug‑and‑play with compatible ballasts or direct wiring via ballast bypass for flexible retrofits.
- CCT Tunable: Select between 3500K, 4000K, or 5000K to match fixture application and occupant needs.
- Efficient Output: Produces 1,900 lumens at just 15W for bright illumination with low energy use.
- Durable Construction: Frosted glass with shatterproof PET coating for safer handling and reduced debris risk.
- Reliable Performance: Long life LED technology rated for 50,000 hours and backed by a 5‑year warranty.
APPLICATIONS:
- Ideal for office linear fixtures and retrofit projects in schools and retail environments.
- Perfect for corridors, breakrooms, and general commercial ceiling troffers with U‑bend sockets.
- Well suited for facilities looking to reduce maintenance while standardizing color appearance.
- Installation Tip: Use the included wiring instructions when performing ballast bypass to ensure safe, long‑term operation.
SPECIFICATIONS:
- Wattage: 15W
- Lumens: 1,900
- Base Type: Medium 2‑Pin (G13)
- Average Rated Life: 50,000 hours
- Dimmable: No
- Color Options: 3500K / 4000K / 5000K
- CRI: 83
- Voltage: 120-277V
- Power Factor: 0.9
- Beam Angle: 320°
- Material: Glass with PET Coating
- Equivalent Wattage: FB32T8 (32W Fluorescent Equivalent)
- Amps: 0.013
- Size: 6"
- Item Dimensions (in): W 7.2 x H 1.3 x D 23.2
- Average Life Span (Years): 46
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Listed for Damp Location; UL Rated For Enclosed Fixtures
- Safety Ratings: Safety Rated For USA and Canada; Mercury Free
- Operating Temperature: -4°F to 113°F
