Description

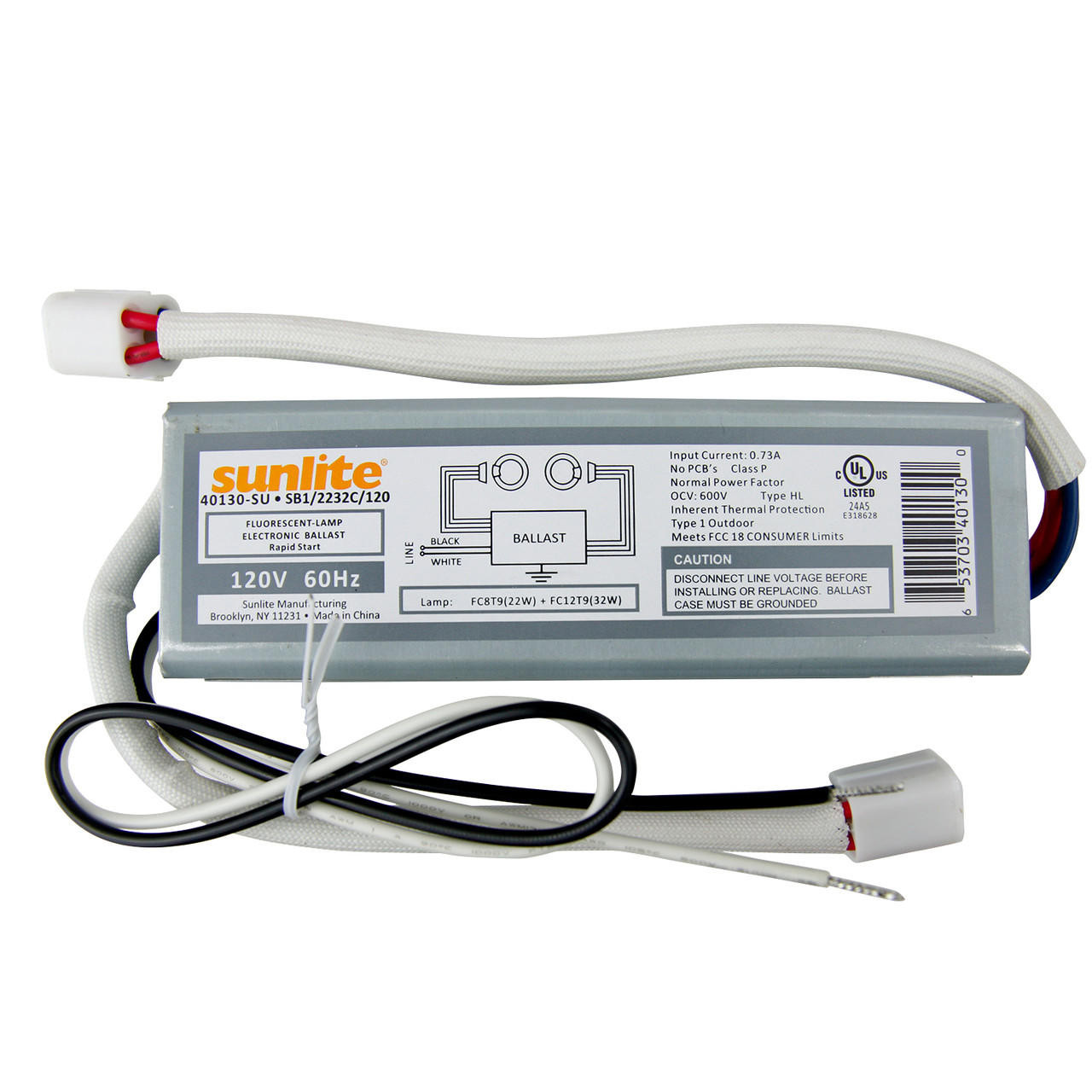

SB122/32C120 Commercial Rapid-Start Electronic Ballast For FC8T9 And FC12T9 Lamps In 120 Volt Fixtures
Replace aging inductive ballasts with a compact rapid-start electronic unit designed to stabilize lamp ignition and reduce flicker in single-lamp fluorescent fixtures, making maintenance quicker and more reliable for commercial installations.
KEY FEATURES:
- Rapid-Start Electronic: Ensures consistent, flicker-reduced starts for FC8T9 and FC12T9 lamps.
- Wide Compatibility: Works with FC8T9 22W and FC12T9 32W lamps for flexible retrofit options.
- Reliable Operation: 120V, 60Hz design for stable performance in standard fixtures.
- Compact Retrofit Form: Slim dimensions simplify installation in existing housings.
- Safety Listed: UL Listed for added confidence during commercial servicing.
APPLICATIONS:
- Ideal for office lighting maintenance and quick ballast replacements.
- Well suited for retail display fixtures and service counters.
- Good choice for schools, utility rooms, and light commercial areas.
- Usage Tip: Replace ballasts during routine maintenance to minimize downtime and ensure synchronized lamp starts.
SPECIFICATIONS:
- Compatible Lamps: FC8T9 (22W) & FC12T9 (32W)
- Voltage: 120V
- Frequency: 60Hz
- Ballast Type: Electronic Ballast - Rapid Start
- Number Of Lights: 1
- Item Dimensions (W×H×D): 1.6" × 0.9" × 5.9"
- Package Weight: 0.850 lb
- Safety: UL Listed
- Item UPC: 653703401300
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Listed
