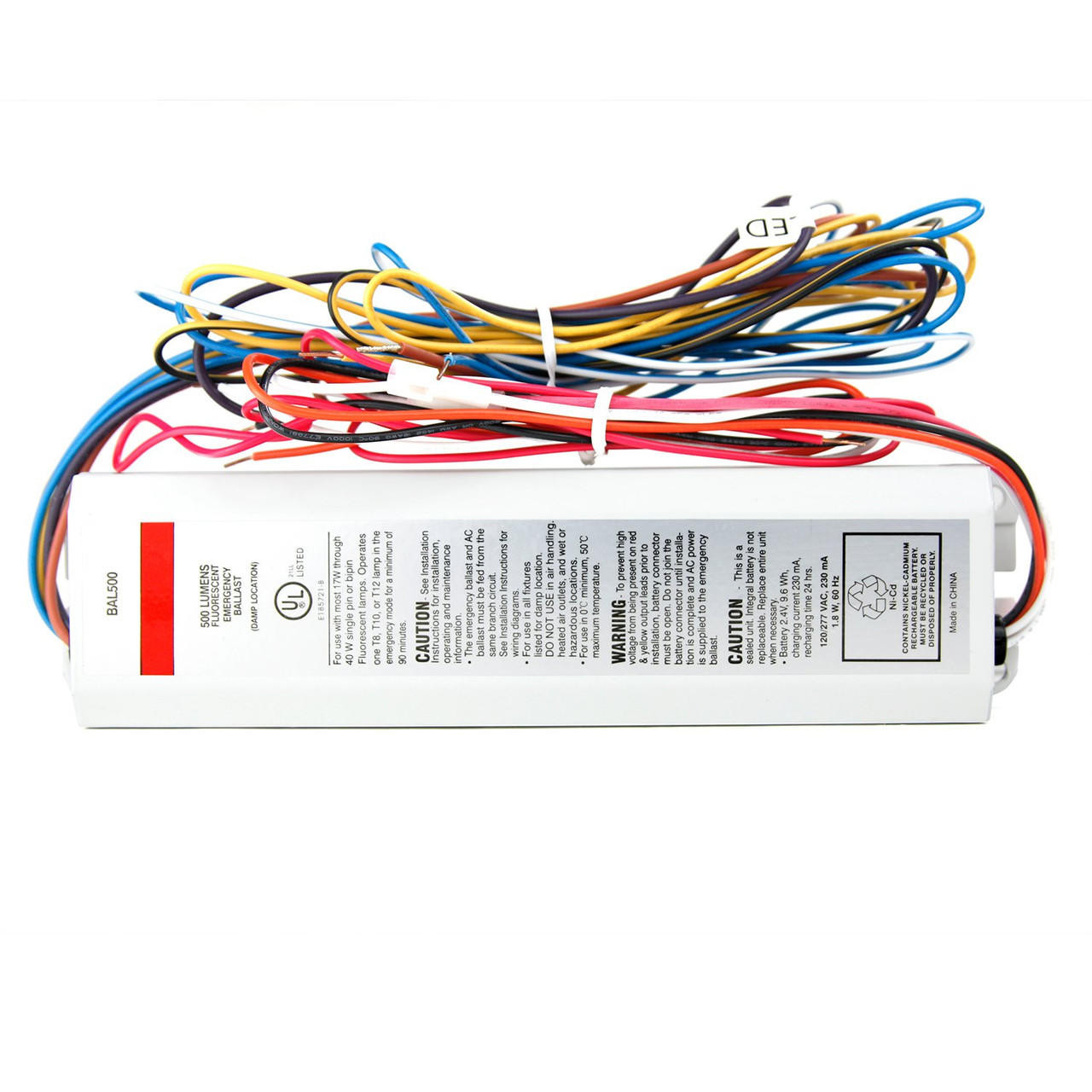

BAL500TD Emergency Lighting Ballast With Built-In NiCad Battery For 17-40W T8/T10/T12 | Reserve Power Up To 90 Minutes
Designed to keep fluorescent fixtures illuminated during power outages, this integrated emergency ballast delivers reliable reserve lighting for up to 90 minutes without additional wiring—ideal for retrofitting existing T8, T10, or T12 lamp fixtures and reducing maintenance hassles associated with separate emergency packs.
KEY FEATURES:
- Integrated Emergency Power: Built-in battery provides up to 90 minutes of illumination during outages for safe egress and continued operation.
- Built-In NiCad Battery: 2.4V, 9.6 WH NICAD battery with 230 mA charging current for automatic charging while line power is present.
- Wide Lamp Compatibility: Works with 17–40W fixtures using T8, T10, or T12 single- or bi-pin lamps for flexible retrofit options.
- Multi-Voltage Operation: Designed for 120/277V fixtures to fit common commercial and residential installations.
- Low-Profile, Easy Install: Compact housing fits inside standard fluorescent fixtures to simplify emergency upgrade projects.
APPLICATIONS:
- Ideal for commercial corridors and stairwells where reliable emergency illumination is required.
- Perfect for educational facilities and healthcare support areas to maintain safe egress lighting.
- Well-suited for retail and office retrofits converting legacy fluorescent fixtures to emergency-capable lighting.
- Usage Tip: Install in fixtures using 17–40W T8/T10/T12 lamps and verify fixture compatibility before installation.
SPECIFICATIONS:
- Wattage Range: 17-40W
- Lumens: 500
- Voltage: 120/277V
- Battery: 2.4V, 9.6 WH NICAD
- Charging Current: 230 mA
- Frequency: 60Hz
- Bulb Shape Compatibility: F20-F40 (T8/T10/T12 single or bi-pin)
- Package Dimensions (in): W 1.9 × H 4.7 × D 11.6
- Package Weight: 0.3 lb
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certification: UL Listed
- Location Rating: Suitable For Damp Locations
- Battery Recharge: Automatically recharges in 24 hours when power is restored
- Application Note: Designed for commercial and residential use
