Description

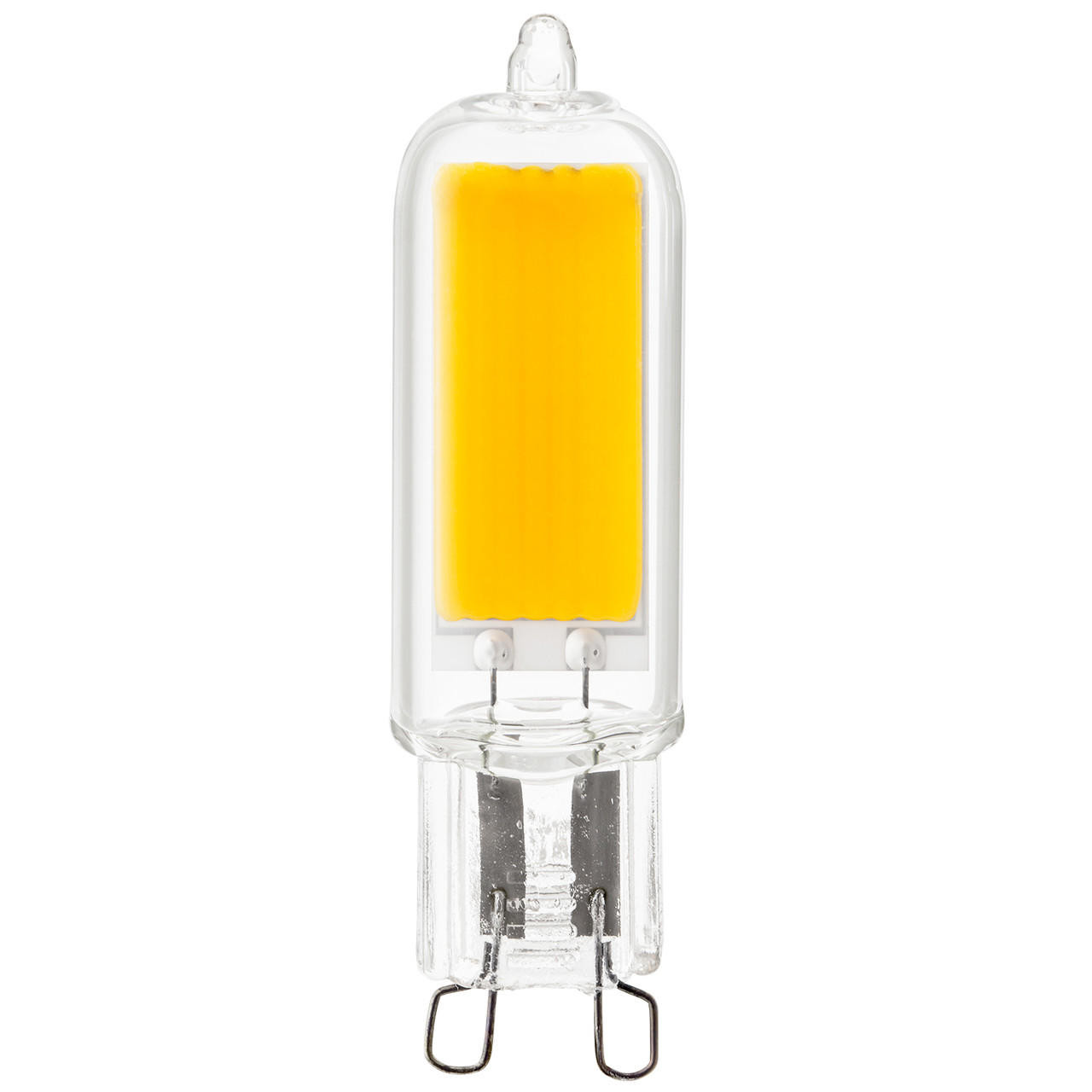

G9/LED/3W/CL/120V/30K Compact G9 Bi-Pin Replacement | Soft White (3000 K) For Chandeliers, Track And Under-Cabinet
Upgrade legacy halogen fixtures with a compact, energy-saving G9 solution that delivers even, warm illumination while cutting power use. This 3W LED lamp produces 400 lumens of Soft White light in a familiar clear-glass form factor, making it ideal for chandeliers, display cases, and under-cabinet applications where appearance and consistent output matter.
KEY FEATURES:
- Direct Halogen Replacement: Replaces 40W halogen output using just 3W to reduce energy costs.
- Long Life: Rated for approximately 15,000 hours to minimize maintenance and replacements.
- Compact Clear Design: Similar size and shape to halogen G9 bulbs for a clean fixture appearance.
- Wide Beam Angle: 300° spread provides broad, even illumination for decorative and task fixtures.
- Wet-Location Ready: ETL Listed for wet locations and includes an IP20 ingress rating as specified.
APPLICATIONS:
- Ideal for chandeliers, track lighting, and under-cabinet fixtures needing a compact warm-white source.
- Well suited for wall sconces, display cases, and range hood accent lighting.
- Good choice for residential and hospitality settings seeking low-maintenance accent lamps.
- Usage Tip: Install in fixtures specified for G9 bi-pin lamps and avoid dimmer circuits since the lamp is non-dimmable.
SPECIFICATIONS:
- Wattage: 3W
- Lumens: 400
- Equivalent Wattage: 40W Halogen Equivalent
- Color Temperature: Soft White (3000 K)
- CRI: 80
- Beam Angle: 300°
- Base Type: G9 Bi-Pin
- Average Rated Hours: 15,000
- Material / Finish: Clear Glass
- Voltage: 120V
- Power Factor: 0.70
- Dimensions (MOL x Dia): 2.36" x 0.53"
- Item Weight: 1.000 lb
- Warranty: 2 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certification: ETL Listed - Wet Location
- Country Ratings: Safety Rated For USA and Canada
- Ingress Protection: IP20 (as specified)
Downloads
