Description

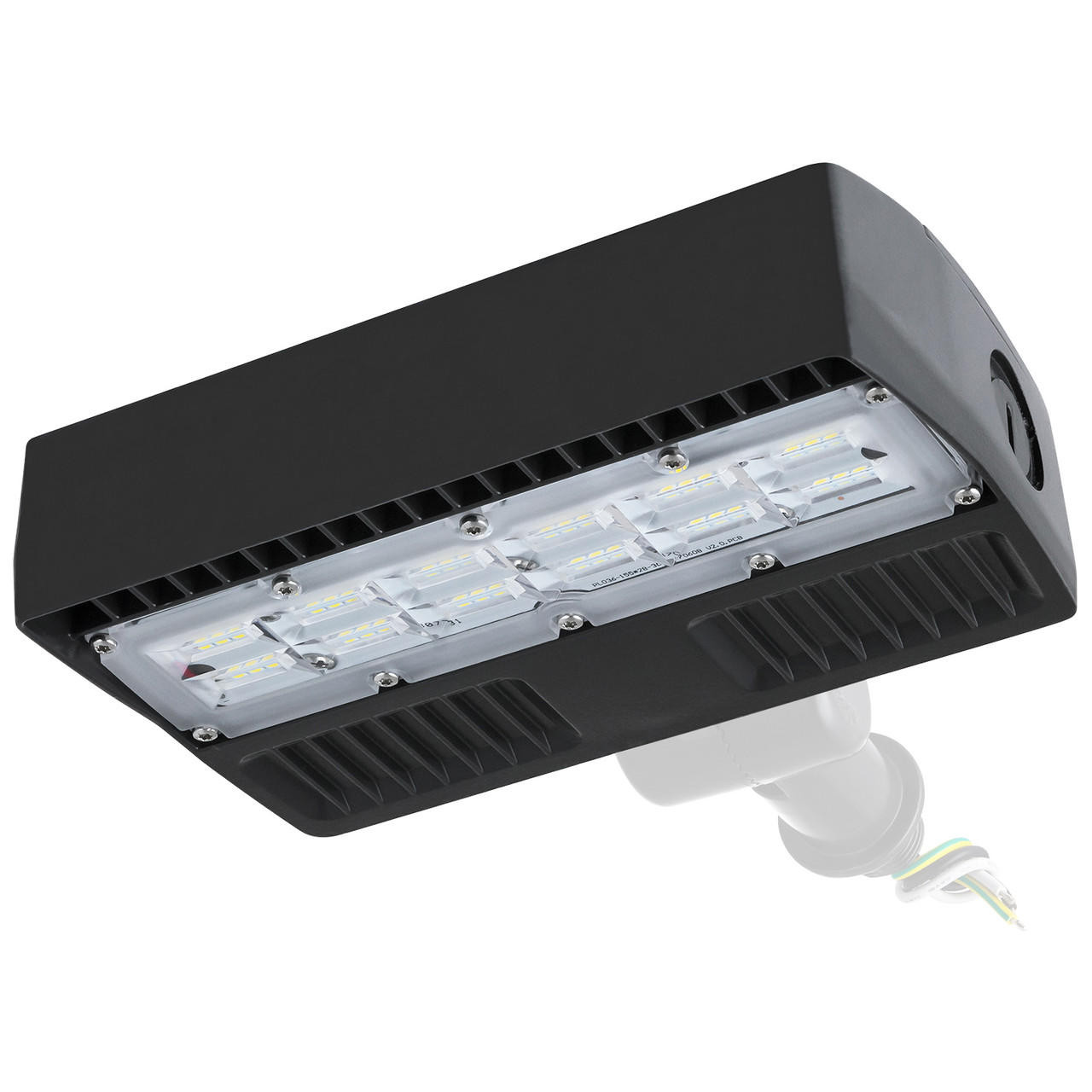

LFX/STL/20W/MV/50K/T3 Commercial Roadway Fixture | Daylight (5000 K) ETL Wet-Location Area Light For Streets & Parking
Designed to lower energy and maintenance costs for municipal and commercial exterior lighting, this compact LED roadway fixture delivers efficient, high-quality illumination in a durable, weatherproof package. Ideal for upgrading older HID or inefficient fixtures, it provides consistent output and long service life to reduce relamping frequency and operational disruption.
KEY FEATURES:
- High Efficiency: Produces 2,200 lumens from just 20 watts for strong light output with low energy use.
- Durable Construction: Metal housing with clear lens and bronze finish resists outdoor conditions for long-term reliability.
- Wide Distribution: 100°–60° beam spread provides broad, even coverage for streets and lot applications.
- Long Life: 50,000-hour rated lifespan reduces maintenance cycles and total cost of ownership.
- Wide Voltage Range: Universal 120–277V input simplifies installation across common commercial supplies.
APPLICATIONS:
- Ideal for roadways, parking lots, and pedestrian pathways.
- Well suited for campuses, municipal lighting, and commercial properties.
- Great for retrofit projects replacing older street and area luminaires.
- Usage Tip: Mount at recommended heights for area coverage and pole spacing to maximize uniformity.
SPECIFICATIONS:
- Wattage: 20 W
- Lumens: 2,200
- Beam Spread: 100°-60°
- Color Temperature: Daylight (5000 K)
- Emitted Color: Super White
- CRI: 70+
- Lifespan: 50,000
- Fixture Material: Metal
- Lens Finish: Clear
- Watt: 20
- Power Factor: 0.92
- Input Voltage: 120-277
- Dimmable: Not Dimmable
- Fixture Finish: Bronze
- Operating Temperature: -40° to 40° C
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: ETL Listed
- Location Rating: Wet Location
- Warranty: 5 Years
