Description

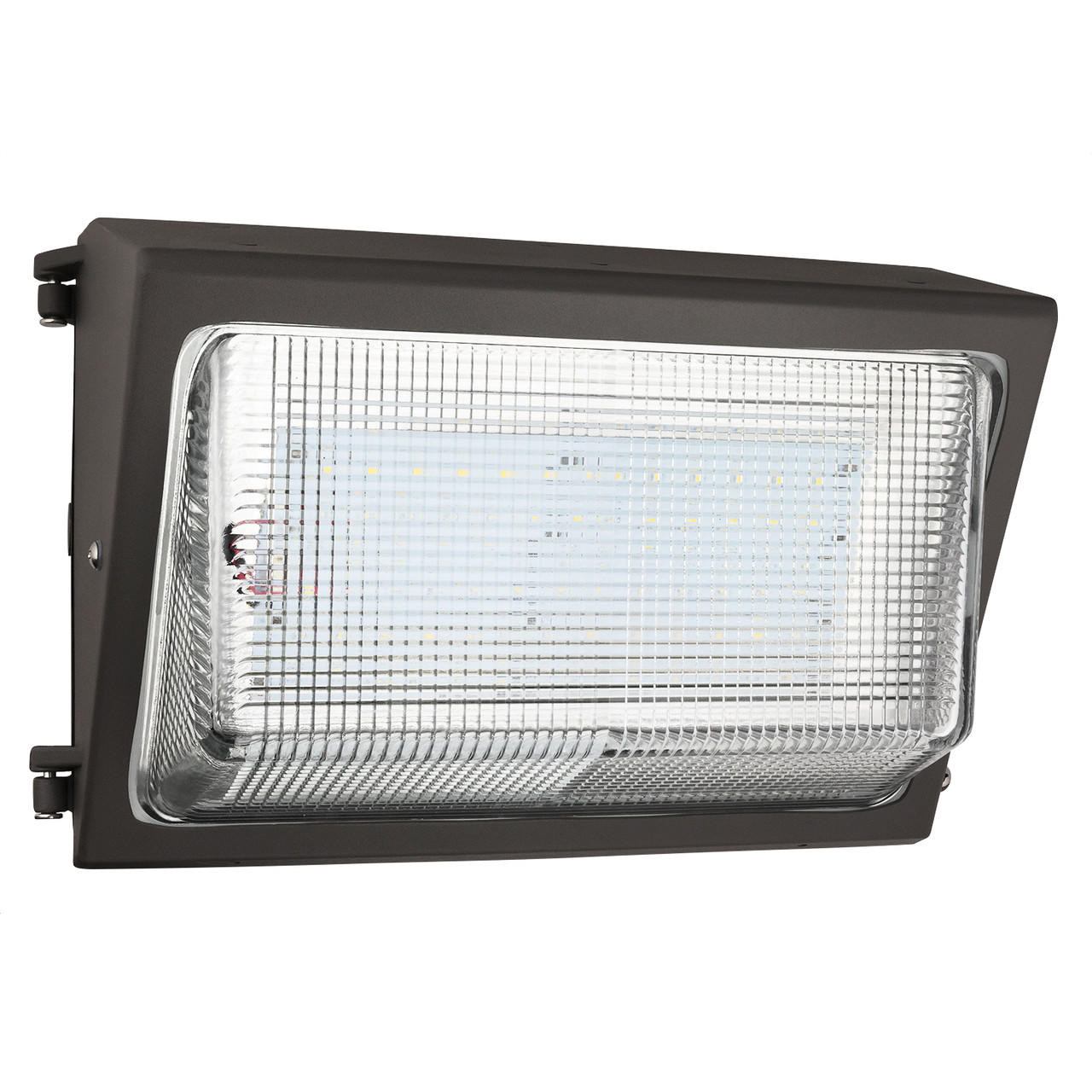

CCT Selectable Outdoor Wall Pack With 25/40/60/80W Options | IP65-Rated Security Illumination For Parking And Storefronts
Purpose-built for exterior security and perimeter lighting, this CCT-selectable LED wall pack replaces older HID fixtures with high lumen output across four selectable wattages, reducing energy use and maintenance for parking lots, storefronts, and facility perimeters.
KEY FEATURES:
- Four Watt Options: Select 25W, 40W, 60W, or 80W to match required site illumination and save energy versus legacy HID sources.
- CCT Selectable: Switch between 3000K, 4000K, and 5000K to tune color appearance for safety and visual comfort.
- High Lumen Output: Available lumen packages support bright, uniform illumination for large outdoor areas.
- Rugged Construction: Die-cast aluminum housing with bronze finish and clear lens designed for outdoor durability.
- Wide Voltage Range: 120-277V input for flexible installation across standard commercial circuits.
APPLICATIONS:
- Ideal for parking lots, building perimeters, and storefront security lighting.
- Well suited for commercial campuses, warehouses, and loading zones requiring reliable outdoor illumination.
- Perfect for retrofitting older wall packs and HID fixtures to reduce maintenance and energy costs.
- Installation Tip: Mount at recommended heights to maximize uniform coverage and select wattage to meet local light-level requirements.
SPECIFICATIONS:
- Wattage: 25 / 40 / 60 / 80
- Lumens: 3,800 / 6,080 / 9,120 / 12,020
- Color Temperature: CCT Selectable (3000K / 4000K / 5000K)
- CRI: 70+
- Lifespan: 50,000 hours
- IP Rating: IP65
- Input Voltage: 120-277V
- Dimmable: No
- Fixture Material: Aluminum
- Fixture Finish: Bronze
- Lens Finish: Clear
- Mounting: Wall
- Dimensions: 14.3" x 7.52" x 9.2"
- Usage: Outdoor
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: Not Rated for ET or UL
- Location Rating: IP65 - Suitable For Outdoor Applications
- Warranty: 5-Year Limited Warranty
