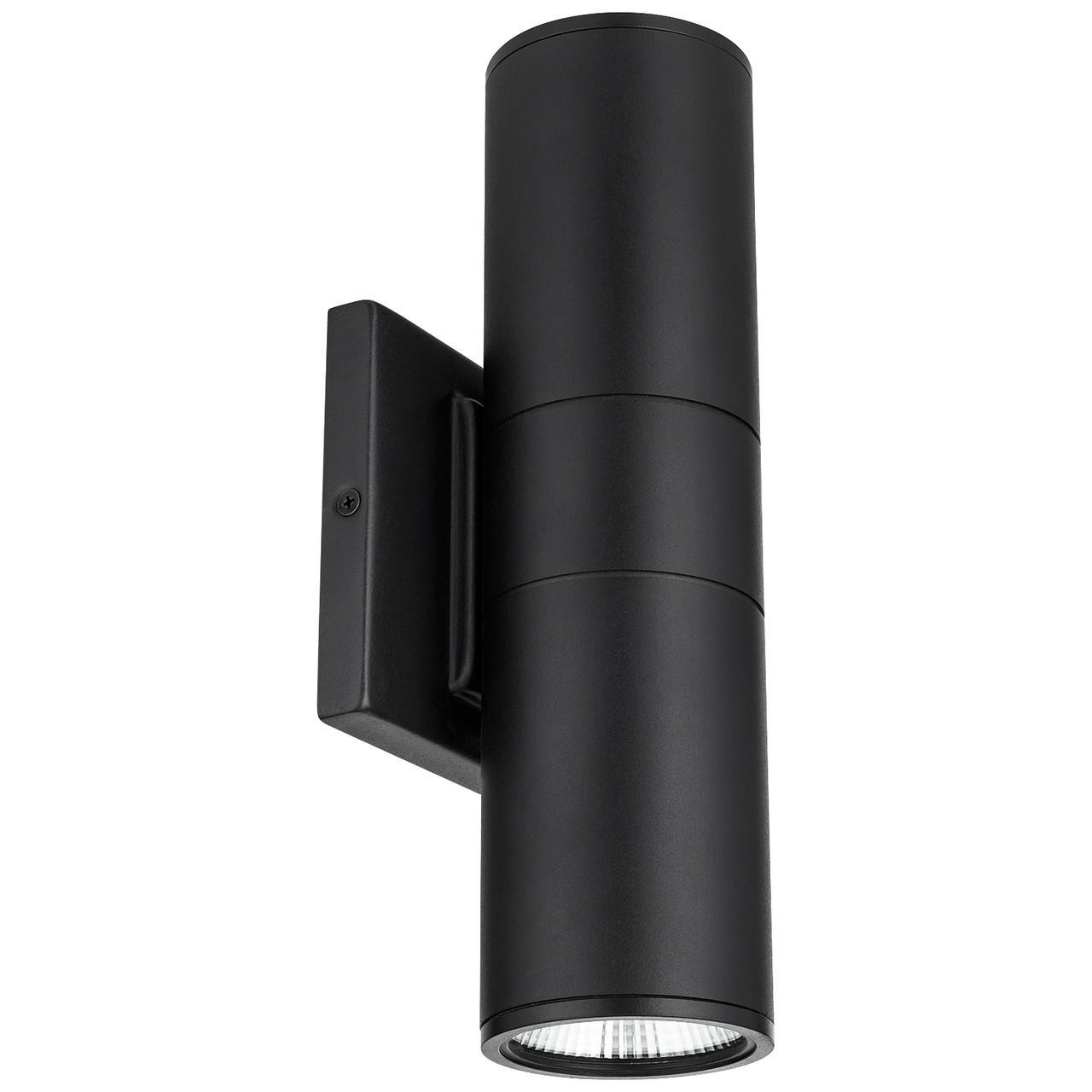

LFX/UD/R/12''/24W/BK/SCT Outdoor Up/Down Wall Fixture | Cool White (4000 K) For Facades, Pathways, And Entrances
Built for exterior facades and perimeter lighting, this 24W up/down LED fixture replaces bulky incandescent and HID fixtures with efficient, low‑maintenance illumination. The selectable CCT options simplify stock and specification by offering 3000K, 4000K, or 5000K tones in a single SKU while delivering 1,700 lumens and a 50,000‑hour rated life.
KEY FEATURES:
- Selectable Color Temperature: Switch between 30K/40K/50K on the fixture to match architectural or security needs.
- Energy Efficient: 24W LED design provides high output (1,700 lm) with a compact footprint and reduced energy use vs. legacy sources.
- Durable Outdoor Construction: Aluminum and steel housing with glass lens and IP54 rating for protected outdoor operation.
- Reliable Performance: 50,000 hour lifespan and 80+ CRI for consistent color rendering and long service intervals.
- Wide Voltage Range: 120–277V input supports common commercial and industrial power systems.
APPLICATIONS:
- Ideal for exterior building facades and architectural accent lighting.
- Perfect for pathways, entrances, and perimeter security illumination.
- Well suited for commercial storefronts, parking lot perimeters, and covered walkways.
- Installation Tip: Mount on wall at desired height and select CCT on site to match adjacent fixtures for cohesive appearance.
SPECIFICATIONS:
- Wattage: 24W
- Lumens: 1,700
- Color Temperature: CCT Selectable (30K / 40K / 50K)
- CRI: 80+
- Lifespan: 50,000 hours
- Beam Spread: 120°
- Input Voltage: 120-277V
- Dimmable: Not Dimmable
- IP Rating: IP54
- Fixture Material: Aluminum & Steel
- Lens Material: Glass
- Finish: Black
- Mounting: Wall
- Warranty: 5 Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: ETL Listed
