Description

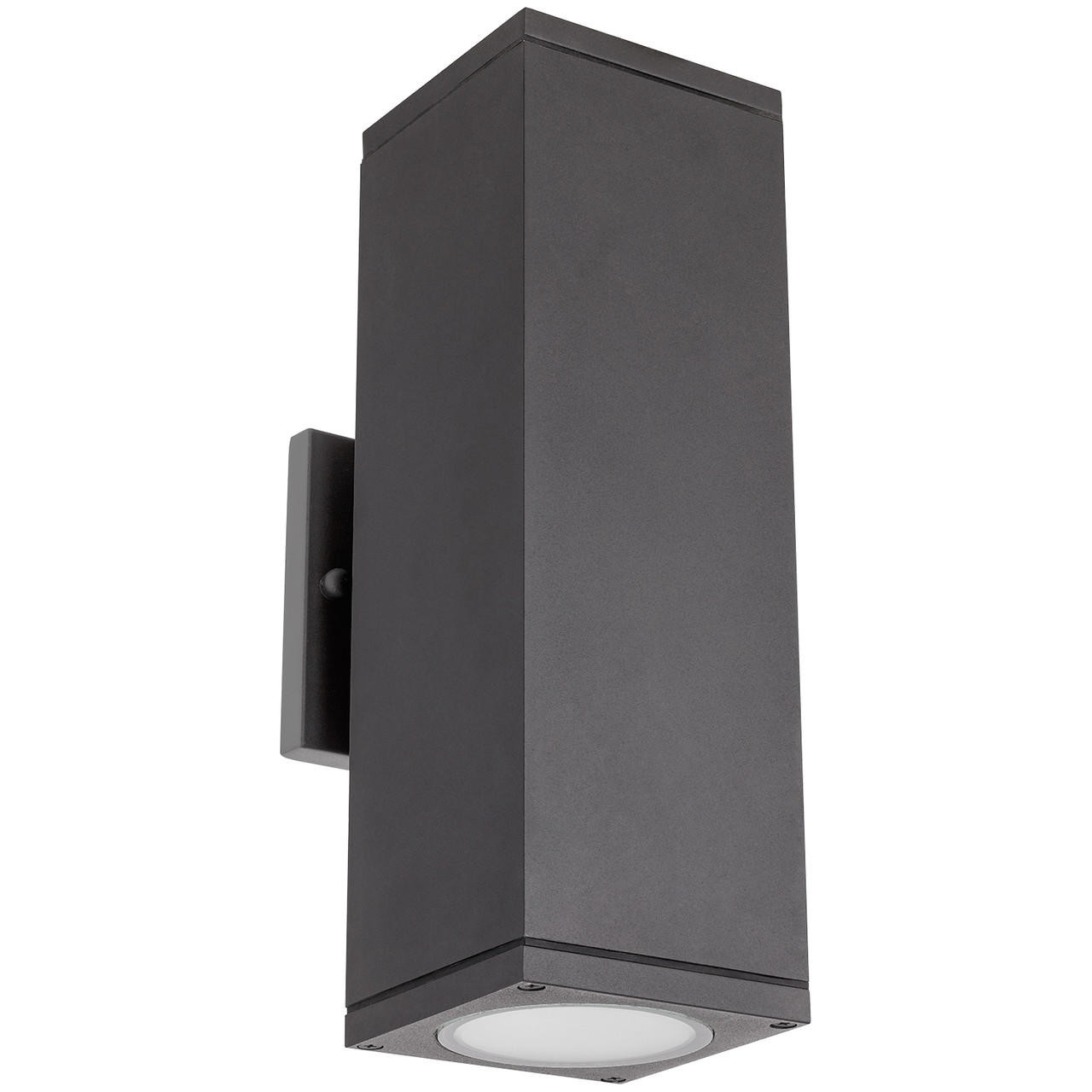

LFX/UD/SQ/24W/SCT/MV/BK/10in CCT Selectable Outdoor Wall Fixture For Security And Entryway Illumination
Upgrade exterior entrances and perimeter areas with this compact, low-maintenance LED wall fixture that delivers selectable color temperatures to match site requirements while reducing relamping and energy costs. Its rugged aluminum and steel construction and clear lens provide focused up/down illumination ideal for security and wayfinding applications.
KEY FEATURES:
- Selectable Color: CCT Selectable design lets installers choose Warm, Neutral, or Daylight tones on site for consistent exterior appearance.
- High Output: Produces approximately 1,700 lumens from a 12W driver for efficient perimeter illumination.
- Durable Construction: Aluminum and steel housing with a clear lens resists outdoor conditions and preserves light distribution.
- Long Service Life: Rated for 50,000 hours to minimize maintenance cycles on exterior installations.
- Wide Voltage Range: 120-277V input simplifies wiring across commercial and residential sites.
APPLICATIONS:
- Ideal for building entrances, walkways, and perimeter security lighting.
- Well-suited to commercial storefronts, multifamily complexes, and amenity lighting.
- Good choice for retrofit projects where selectable color temperature improves site consistency.
- Installation Tip: Mount at typical wall-sconce heights to balance up/down illumination and minimize glare.
SPECIFICATIONS:
- Wattage: 12W
- Lumens: 1,700
- Beam Spread: 30°
- Color Temperature: CCT Selectable
- Color Rendering Index (CRI): 80+
- Lifespan: 50,000 hours
- Input Voltage: 120-277V
- Dimmable: Not Dimmable
- Fixture Material: Aluminum & steel
- Lens Finish: Clear
- Mounting: Wall
- Usage: Outdoor
- Warranty: 5 Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: Not Rated for ET or UL
- Location Rating: Outdoor Usage
- Warranty: 5 Years
