Description

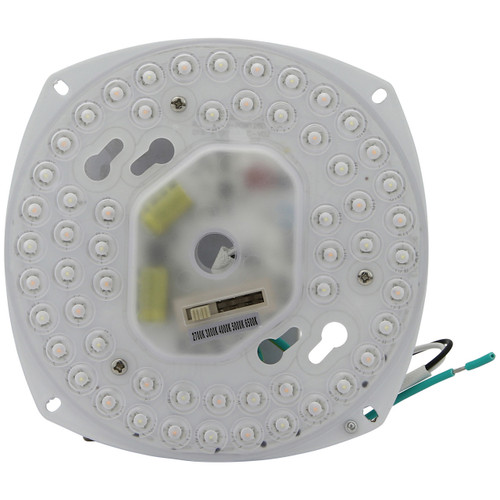

MODULE/LED/5''/20W/SCT/AC Selectable 5.75in LED Light Engine | CCT Selectable Retrofit for Indoor Fixtures, Ceiling Fans, and Small Panels
Upgrade tired or inefficient ceiling fixtures with a compact, high-output LED module that delivers even light and flexible color choices; ideal for retrofits where preserving existing decorative fixtures is important while cutting energy and maintenance costs.
KEY FEATURES:
- Five Color Options: Front-mounted selector offers Warm White to Bright Daylight tones for tailored ambiance.
- High Output, Low Energy: Produces 2,000 lumens while consuming only 20W for significant energy savings.
- Easy Retrofit: Universal mounting supports threaded centers or flat bases for straightforward installation.
- Dimmable Performance: Compatible with forward-phase dimming systems (Triac/Incandescent) for smooth level control.
- Durable Construction: Aluminum and steel housing with acrylic lens for reliable, long-lasting service.
APPLICATIONS:
- Ideal for indoor ceiling fixtures in residential and hospitality settings.
- Well suited for ceiling fans and decorative fixtures needing modern LED performance.
- Works in small panels and retrofit situations where a compact light engine is required.
- Installation Tip: Verify fixture mounting type and be prepared to splice wires for universal compatibility.
SPECIFICATIONS:
- Wattage: 20W
- Lumens: 2,000
- Color Rendering Index (CRI): 80
- Color Temperature: CCT Selectable
- Average Rated Hours / Life Span: 50,000 hours
- Dimmable: Yes
- Dimming Type: Forward Phase (Triac or Incandescent)
- Voltage: 120V
- Power Factor: 0.98
- Material: Aluminum & Steel
- Lens Material: Acrylic
- Replaceable LED Module: Yes
- LED Chip Manufacturer: 2835
- Finish: White
- Item Dimensions (in): W 5.75 x H 0.7 x D 5.75
- Size: 5"
- Warranty: 5 years
- Item UPC: 653703882819
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certification: ETL Listed
- Location Rating: Damp Location
