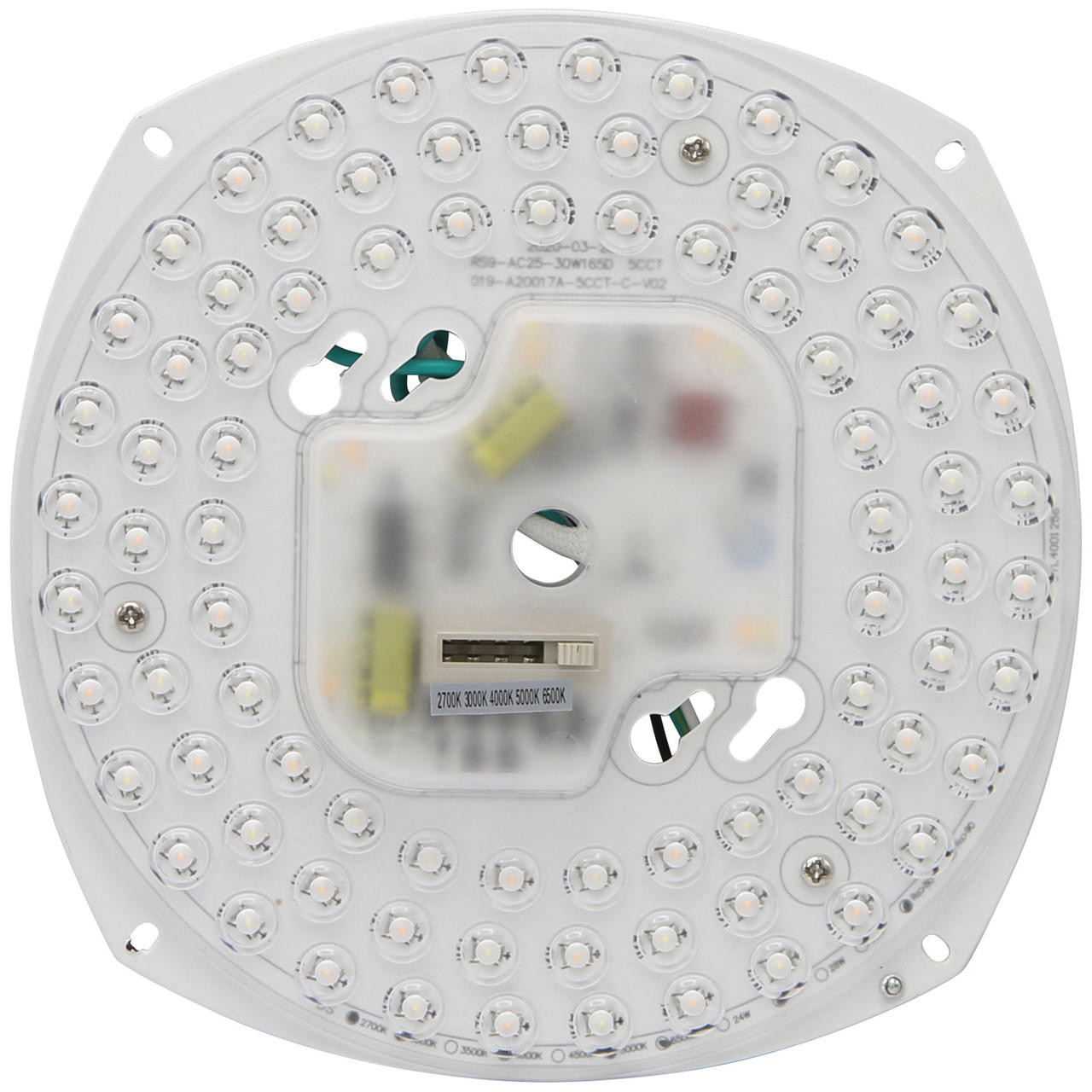

Sunlite 88283-SU - 6.5-Inch LED Retrofit Panel - CCT Selectable - 30W

SKU:
SSU-88283-SU
$33.28
Customer Reviews

Description

Low-Profile Retrofit Ceiling Light Engine For Indoor Recessed Fixtures | CCT Selectable Downlight For Offices, Retail, And Hospitality

Upgrade existing ceilings quickly with a low-profile LED retrofit designed for indoor recessed and flush-mount fixtures. This compact 6.5" engine delivers tunable, dimmable light that reduces maintenance and energy costs while improving visual comfort in offices, corridors, and living spaces.

KEY FEATURES:

  • Low-Profile Retrofit: Installs into existing 6.5" openings for fast ceiling upgrades and minimal disruption.
  • CCT Selectable: User-selectable color tuning (2700K–6500K) to match task or ambient needs.
  • Energy Efficient: 30W LED producing approximately 3,000 lumens for substantial energy savings.
  • Quality Light: 80 CRI improves color rendering for accurate color appearance.
  • Long Life & Reliability: Rated for 50,000 hours with a high 0.98 power factor and a 5-year warranty.
  • Durable Construction: Steel & aluminum housing with an acrylic lens for even light distribution.
  • Damp Location Ready: ETL Listed for damp locations, suitable for protected indoor environments.

APPLICATIONS:

  • Ideal for office ceilings, retail aisles, and multiunit residential common areas.
  • Great for corridors, lobbies, and hospitality spaces needing consistent, tunable light.
  • Suitable for retrofit projects where replacing recessed or flush fixtures is preferred over full remodels.
  • Tip: Pair with compatible trailing-edge dimmers for smooth dimming performance and extended life.

SPECIFICATIONS:

  • Wattage: 30W
  • Lumens: 3,000
  • Equivalent Wattage: 100
  • Color Temperature: CCT Selectable (2700K / 3000K / 4000K / 5000K / 6500K)
  • CRI: 80
  • LED Chip Manufacturer: SMD2835
  • Power Factor: 0.98
  • Voltage: 120V
  • Dimmable: Yes
  • Material: Steel & Aluminum
  • Lens Material: Acrylic
  • Finish: White
  • Size: 6.5" Diameter
  • Average Rated Hours: 50,000
  • Average Life Span (Years): 46
  • Warranty: 5 years

CERTIFICATIONS & ADDITIONAL NOTES:

  • Safety Rating: ETL Listed
  • Location Rating: Suitable for Damp Locations
  • Warranty: 5-year limited warranty

Downloads


Extra Information

Brand:
Sunlite
UPC:
653703882833
Product Code:
MODULE/LED/6.5''/30W/SCT/AC
Order Number:
88283-SU
Bulb Type:
Light Engine
Wattage:
30 Watt
Wattage Equivalent:
200 Watt
Color Temperature:
CCT Selectable
CCT Range:
2700K/3000K/4000K/5000K/6500K
Base Material:
Steel & Aluminum
Lumens:
3000
Width (in.):
6.50
Dimmable:
Yes
Dimming Method:
Triac or Incandescent
Diameter (in.):
6.50
Warranty:
5 Year
Price Shown:
Per LED Engine
