Description

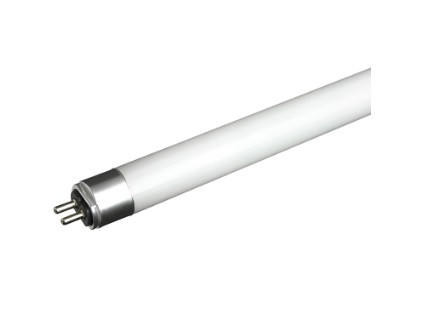

Four-Foot T5 Replacement LED Tube For Retail, Office, And Industrial Fixtures | Type B Ballast Bypass Installation | Cool White
Designed for fast commercial retrofits, this Sunlite T5 LED tube replaces legacy fluorescent lamps to deliver consistent Cool White illumination while lowering maintenance and energy costs. The dual-end ballast-bypass configuration simplifies installation in open and enclosed fixtures, making it a practical upgrade for facilities managers and electrical contractors.
KEY FEATURES:
- Ballast-Bypass Design: Dual-end Type B wiring for straightforward retrofit installations.
- Long Life: Rated for 50,000 hours to reduce replacement frequency and maintenance downtime.
- High Output: Produces 3,500 lumens from just 25W for efficient, bright illumination.
- Balanced Color: 4000K Cool White with CRI 82 for natural-looking light across workspaces.
- Wide Voltage Range: Operates on 120-277V with a G5 miniature bi-pin base; not dimmable.
APPLICATIONS:
- Ideal for linear fixtures in offices, retail aisles, and light industrial work areas.
- Well suited for schools, corridors, and administrative spaces requiring stable cool white light.
- Perfect replacement for T5 fluorescent tubes in damp-rated fixtures and enclosed housings.
- Installation Tip: Remove existing ballast and follow Type B dual-end wiring instructions for a safe retrofit.
SPECIFICATIONS:
- Wattage: 25W
- Lumens: 3,500
- Color Temperature: 4000K
- CRI: 82
- Average Rated Hours: 50,000
- Average Life Span Years: 46
- Base Type: Miniature Bi-Pin (G5)
- Voltage: 120-277V
- Power Factor: 0.9
- Beam Angle: 180°
- Material: Glass
- Dimmable: No
- Size: 4 Foot
- MOL (in): 45.8
- Diameter (in): 0.82
- Package Weight (lb): 0.350
- Item UPC: 653703884172
- DLC Number: PLWW58NEP3UE
- DLC Classification: Standard
- Warranty Years: 5
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Classified - Damp Location; UL Rated For Enclosed Fixtures; Approved For USA & Canada
- DLC Listing: Yes (PLWW58NEP3UE)
- Warranty: 5-year limited warranty
