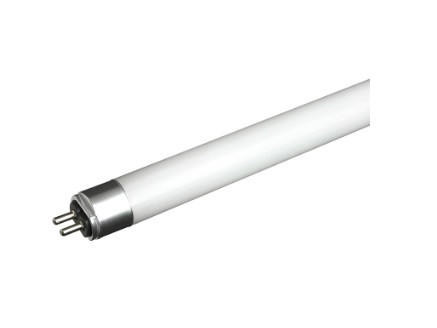

Bright Daylight (6500 K) T5 LED Replacement Tube Type A | High Output HO Fixture Retrofit For Warehouses, Retail, And Garages
Engineered for fast upgrades of high-output fluorescent fixtures, this T5 LED replacement delivers crisp, daylight illumination while cutting maintenance and energy costs. Its plug-and-play Type A compatibility with HO fixtures simplifies installs in large spaces where bright, consistent light is essential.
KEY FEATURES:
- Easy Retrofit: Type A plug-and-play design installs into HO T5 fixtures for quick replacement.
- Bright Daylight Output: Produces 3,500 lumens at a bright daylight color for clear task visibility.
- Long Life & Warranty: Rated for 50,000 hours with a 5-year limited warranty to reduce relamping cycles.
- Durable Construction: Glass T5 tube with Miniature Bi-Pin (G5) base for reliable fixture fit.
- Fixture Ready: UL Listed for damp locations and rated for use in enclosed fixtures.
- Non-Dimmable: Stable, constant output where dimming is not required or supported.
APPLICATIONS:
- Ideal for warehouses and distribution centers needing bright, uniform illumination.
- Well suited for retail spaces and large open commercial areas requiring daylight tones.
- Good choice for manufacturing floors and utility spaces using HO T5 fixtures.
- Installation Tip: Verify HO ballast compatibility and follow Type A plug-and-play guidance for trouble-free installation.
SPECIFICATIONS:
- Wattage: 25W
- Lumens: 3,500
- Equivalent Wattage: F54T5/HO
- Power Factor: 0.9
- Color Temperature: 6500K
- CRI: 82
- Base Type: Miniature Bi-Pin (G5)
- Bulb Shape: T5
- Average Rated Hours: 50,000
- Average Life Span Years: 46
- Material: Glass
- Beam Angle: 180°
- Dimmable: No
- Ballast Factor: High Output (HO) Required
- Size: 4 Foot
- MOL (in): 45.8
- Diameter (in): 0.64
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Listed - Damp Location
- Location Rating: Rated for use in enclosed fixtures
- Safety Rated: Canada and USA
