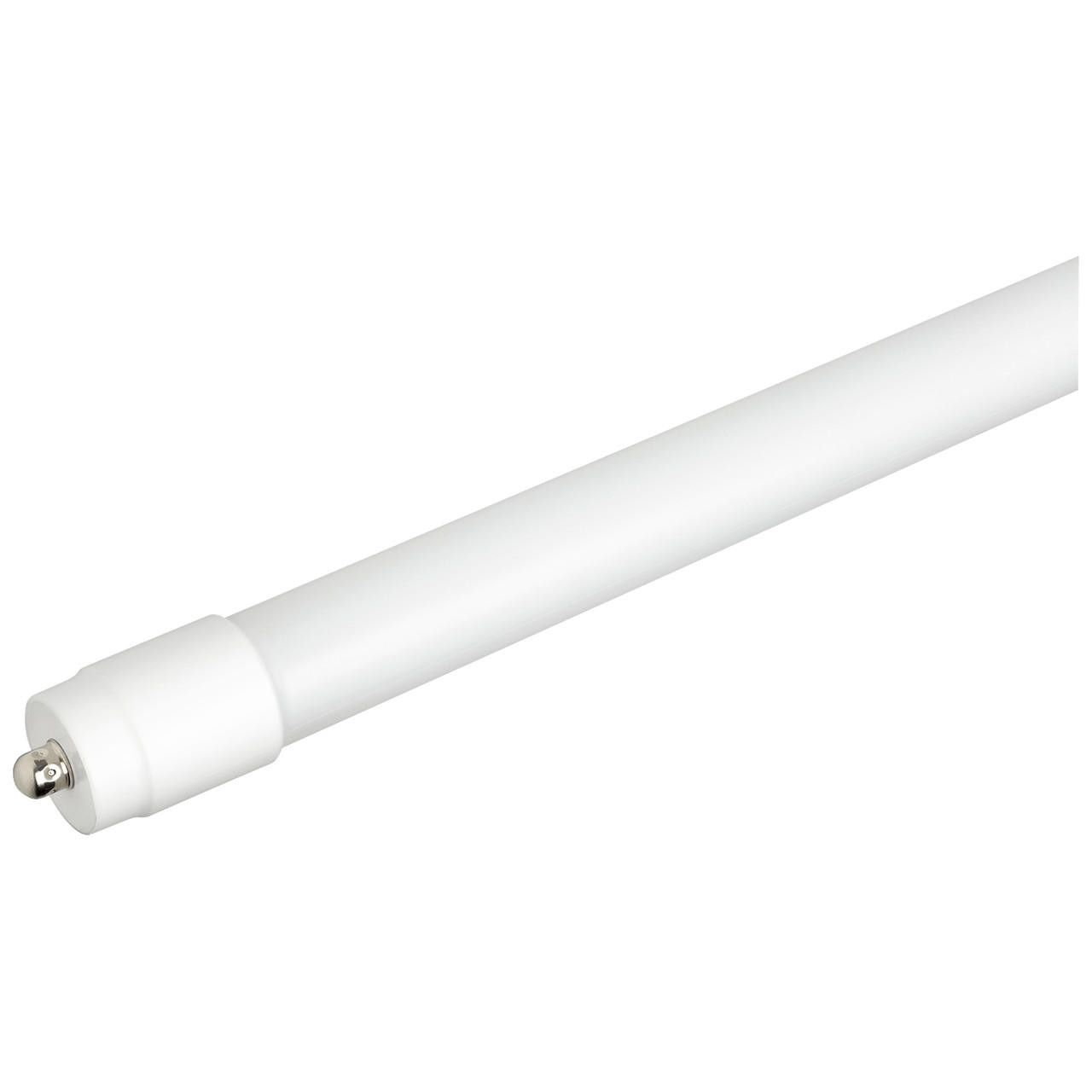

8-Foot LED T8 Retrofit Lamp With Dual-End Ballast Bypass (Type B) | Cool White (4000 K) For Commercial & Industrial Fixtures
Engineered for fast, low-maintenance upgrades in commercial and industrial applications, this 8-foot LED T8 retrofit lamp eliminates frequent fluorescent ballast service while delivering consistent Cool White illumination. The dual-end ballast bypass design and PET-coated glass provide uniform light distribution, reduced maintenance, and long operational life.
KEY FEATURES:
- Ballast-Bypass Retrofit: Dual-end wiring (Type B) allows straightforward conversion from fluorescent fixtures by bypassing the ballast.
- High Output: Delivers 5,500 lumens while consuming 43W for efficient, bright illumination.
- Long Life: Rated for 50,000 hours average life to minimize replacements and maintenance downtime.
- Durable Construction: PET-coated glass finish improves light diffusion and protects the tube surface.
- Rebate-Ready: DLC-listed product with a DLC ID for potential utility incentives.
APPLICATIONS:
- Ideal for warehouses, retail centers, and workshop or industrial facilities.
- Well-suited for ceiling-mounted fixtures, strip lighting, and retrofit projects in commercial spaces.
- Great choice for high-bay and low-bay applications that need bright, consistent Cool White output.
- Installation Tip: Follow ballast-bypass wiring procedures for dual-end lamps and verify compatible fixture wiring before installing.
SPECIFICATIONS:
- Wattage: 43W
- Lumens: 5,500
- Color Temperature: 4000K (Cool White)
- CRI: 82
- Base Type: Single Pin (Double Ended) (Fa8)
- Average Rated Hours: 50,000
- Dimmable: No
- Voltage: 120-277V
- Power Factor: 0.9
- Operating Temperature: -20° to 45° C
- Coating: PET Coating
- Size: 8 Foot (MOL: 94 in, Diameter: 1 in)
- Warranty: 5 Years
- UPC: 653703884417
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Classified - Damp Location; UL Rated For Enclosed Fixtures
- DLC: Yes (DLC ID: PLIKJ08WXZV7)
- Warranty: 5-year limited warranty
