Description

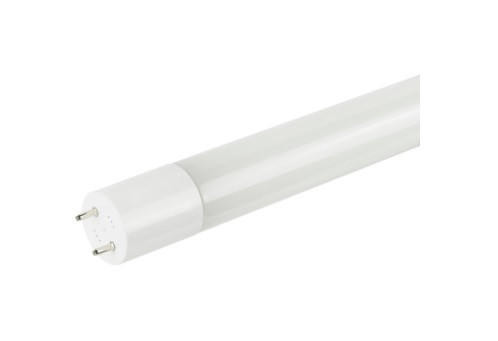

8-Foot Bright Daylight (6500 K) LED Tube | Ballast Bypass Retrofit With Dual-End Wiring For Warehouses And Retail
Designed for fast ballast-bypass upgrades in commercial and industrial spaces, this 8-foot LED tube replaces fluorescent T8 lamps with bright, maintenance-saving light while eliminating ballast maintenance and flicker.
KEY FEATURES:
- Ballast Bypass Design: Dual-end wiring removes the need for a ballast, simplifying retrofit conversions.
- Bright, High Output: Produces 5,500 lumens to illuminate large bays and work areas effectively.
- Long Life: Rated for 50,000 hours to reduce relamping frequency and maintenance costs.
- Durable Coating: PET coating improves handling and resists minor damage during installation.
- Wide Voltage Range: Operates on 120-277V for flexible installation on common circuits.
APPLICATIONS:
- Ideal for warehouses and distribution centers.
- Well-suited for auto garages, workshops, and maintenance bays.
- Great for retail backrooms and utility spaces requiring high-output lighting.
- Installation Tip: Remove existing ballast and wire per dual-end (single-pin FA8) instructions for Type B operation.
SPECIFICATIONS:
- Wattage: 43W
- Lumens: 5,500
- CRI: 82
- Color Temperature: Bright Daylight (6500 K)
- Average Rated Hours: 50,000
- Average Life Span Years: 46
- Voltage: 120-277V
- Power Factor: 0.9
- Base Type: Single Pin (Double Ended) (Fa8)
- Coating: PET
- Material: Glass
- Size: 8 Foot (MOL 94 in, Diameter 1 in)
- Dimmable: No
- Warranty: 5 Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Classified - Damp Location; UL Rated For Enclosed Fixtures
- Location Rating: Safety Rated For Canada and USA
