Description

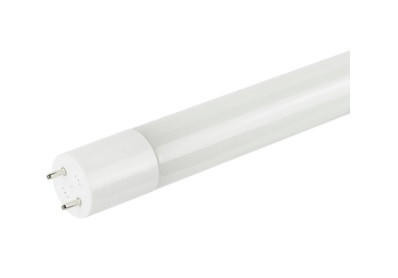

Bright Daylight (6500 K) 4-Foot Type B LED Replacement Tube For T8 Fixtures | Instant-On, Energy-Saving Ballast Bypass
Engineered for straightforward T8 to LED upgrades, this 4-foot ballast bypass tube delivers instant-on bright daylight illumination while cutting energy and maintenance costs for commercial and residential fixtures. The direct-replacement design provides reliable performance and long service life where traditional fluorescent tubes require frequent attention.
KEY FEATURES:
- Instant-On Performance: Reaches full brightness immediately with no flicker or buzzing.
- Type B Ballast Bypass: Direct-wired dual-end connection eliminates the need for ballast operation.
- Energy Efficient: Produces 1800 lumens while consuming just 14W for lower operating costs.
- Long Life: Rated up to 50,000 hours to reduce replacement and maintenance intervals.
- Durable Construction: Frosted, shatterproof glass tube with a Medium G13 2-pin base for standard sockets.
- Fixture Friendly: UL Classified for damp locations and suitable for enclosed fixtures.
APPLICATIONS:
- Ideal for office ceilings, retail displays, and residential garages or basements.
- Well suited for warehouses and utility rooms requiring bright, consistent illumination.
- Perfect for commercial fixture retrofits where ballast removal is planned.
- Usage Tip: Requires ballast bypass wiring; follow manufacturer wiring instructions or consult an electrician for safe installation.
SPECIFICATIONS:
- Wattage: 14W
- Lumens: 1800
- Color Temperature: 6500K
- Color Rendering Index (CRI): 82
- Base Type: Medium 2-Pin (G13)
- Shape: T8 Linear Tube
- Average Rated Hours: 50,000
- Voltage: 120-277V
- Power Factor: 0.9
- Dimmable: No
- Material / Finish: Frosted Glass / White
- Operating Temperature: -20° to 45° C
- Length: 4 Foot (MOL 47.67 in)
- Diameter: 0.98 in
- Average Life Span (Years): 46
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Classified - Damp Location
- Location Rating: Rated For Enclosed Fixtures
- Warranty: 5-year limited warranty
