Description

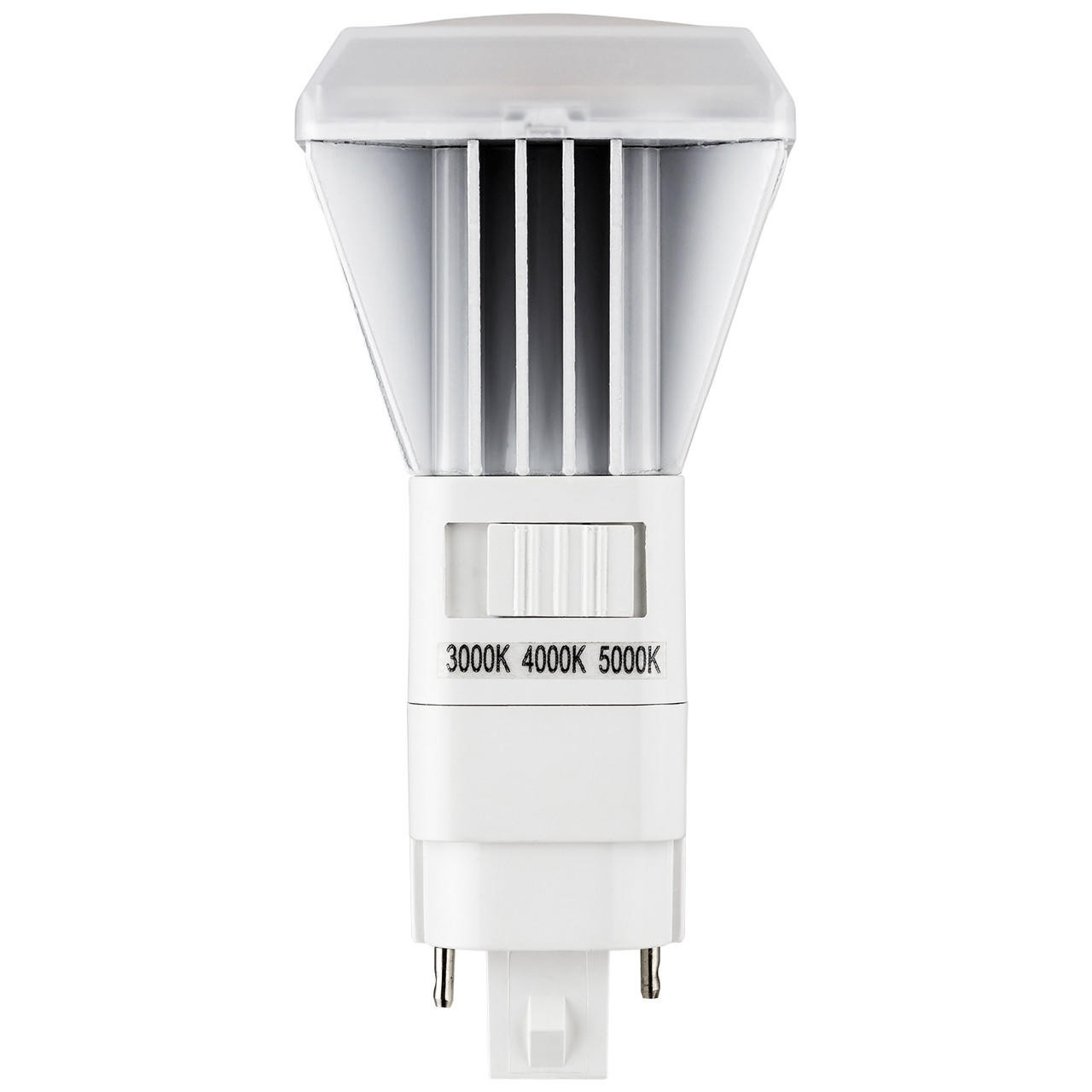

PLV/LED/BP/8W/SCT Versatile Plug-In LED Replacement | CCT Selectable Tunable Color For Commercial And Residential Fixtures
Upgrade fluorescent plug-in fixtures to a low-maintenance LED solution ideal for offices, retail, and residential ceiling fixtures; this compact Sunlite PLV lamp delivers 950 lumens from just 8 watts while offering selectable white tones to match any space and reduce energy and replacement costs.
KEY FEATURES:
- Energy Savings: Produces 950 lumens at only 8W, cutting energy use versus legacy fluorescent lamps.
- Tunable White: Slide-switch selectable 3000K/4000K/5000K to set warm, neutral, or cool white tones without changing lamps.
- Long Life: Rated for up to 50,000 hours to minimize maintenance in hard-to-reach fixtures.
- Ballast Bypass Design: Requires ballast removal for direct-wire installation to ensure reliable LED operation.
- Compact Retrofits: Vertical PLV shape with G24d 2-pin base fits common plug-in housings where ballast bypass is performed.
APPLICATIONS:
- Ideal for commercial ceiling grids, retail display fixtures, and residential recessed housings after ballast bypass.
- Perfect for office spaces, corridors, and hospitality areas needing tunable color and lower maintenance.
- Well suited for retrofit projects replacing 18W fluorescent PL lamps in vertical sockets.
- Installation Tip: Bypass the existing ballast per instructions or consult an electrician before installing.
SPECIFICATIONS:
- Wattage: 8W
- Lumens: 950
- Color Rendering Index (CRI): 80
- Color Temperature: 3000K / 4000K / 5000K (Tunable)
- Base Type: G24d (2-Pin)
- Shape: PLV (Vertical)
- Beam Angle: 180°
- Voltage: 120-277V
- Flicker: Yes
- Dimmable: No
- Average Rated Hours: 50,000
- Material: PC & Aluminum
- Warranty: 5 years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Listed
- Compliance: RoHS Compliant
- Location Rating: Suitable for Damp Locations
