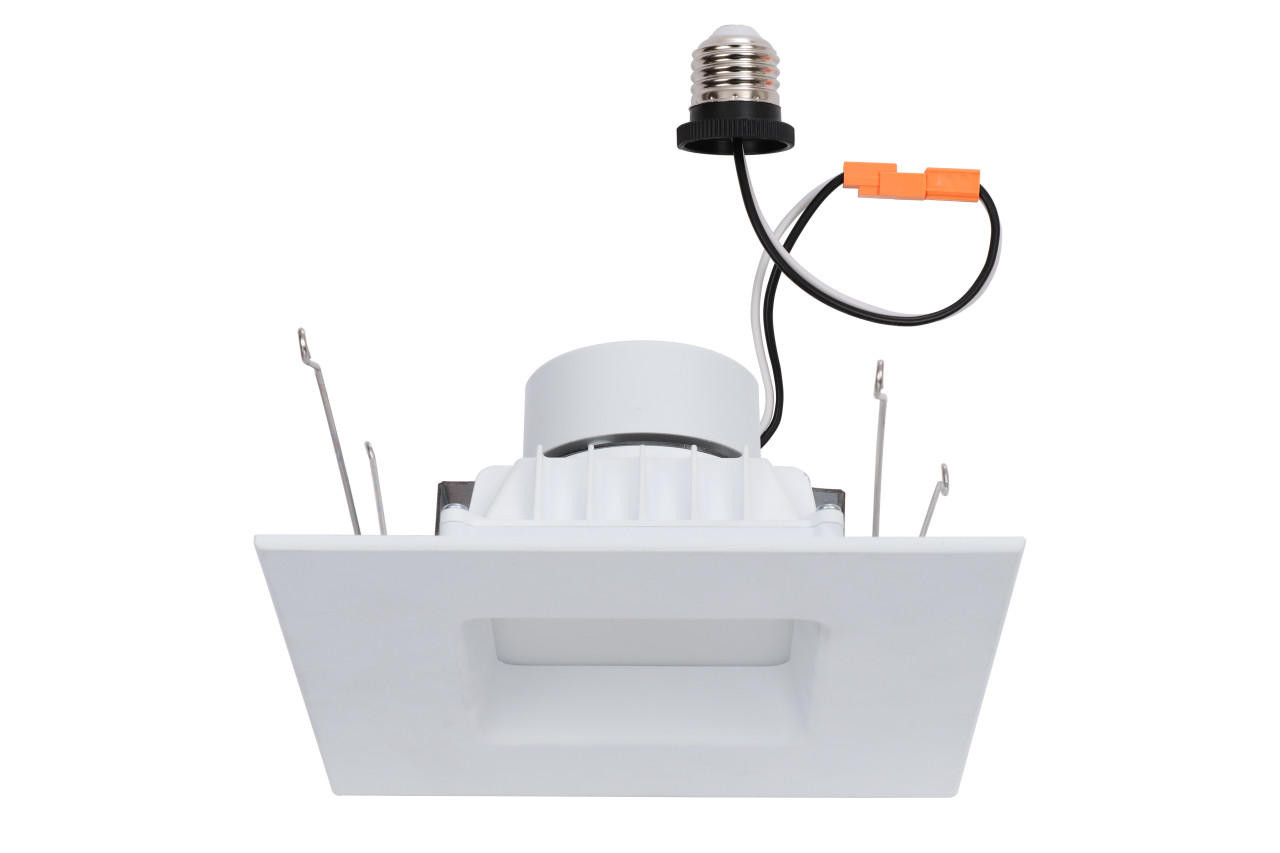

LFX/RDL/5/6S/14W/SCT 5/6" Square Retrofit Downlight | CCT Selectable Dimmable Forward Phase Fixture For Wet Locations
Specifically engineered for fast 5/6" ceiling retrofits, this compact square downlight delivers 1100 lumens from a 14W LED module while offering selectable white tones and high color fidelity to improve occupant comfort and reduce maintenance in damp or exposed environments.
KEY FEATURES:
- Quick Retrofit: Low-profile 5/6" square design installs into existing housings for fast upgrades with minimal disruption.
- CCT Selectable: User-selectable color temperatures (2700K / 3000K / 3500K / 4000K / 5000K) for matching site lighting needs.
- High Color Quality: 90 CRI improves color rendering for retail, hospitality, and task areas.
- Energy Efficient: Consumes just 14W while producing 1100 lumens for excellent efficacy.
- Smooth Dimming: Forward-phase (Triac/Incandescent) dimming compatibility for simple control integration.
- Durable Construction: Aluminum housing with polycarbonate lens for long-lasting performance.
APPLICATIONS:
- Ideal for office retrofit projects, corridor and stairwell lighting upgrades.
- Well suited for multi-family common areas, hospitality corridors, and retail accents.
- Perfect for damp or covered exterior soffits and covered walkways where wet-location rated fixtures are required.
- Installation Tip: Use compatible forward-phase dimmers specified for LEDs to ensure smooth, flicker-free dimming.
SPECIFICATIONS:
- Wattage: 14W
- Lumens: 1,100
- Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K (CCT Selectable)
- CRI: 90
- Beam Spread: 110°
- Power Factor: 0.9
- Input Voltage: 120V
- Dimmable: Forward Phase (Triac or Incandescent)
- Fixture Material: Aluminum
- Lens Material: Polycarbonate
- Shape: Square
- Finish: White
- Dimensions: 3.43" x 6.77" x 6.77"
- Warranty: 5 Years
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: ETL Listed
- Location Rating: Wet Location
- Energy Rating: Energy Star
- Warranty: 5-Year Limited Warranty
