Description

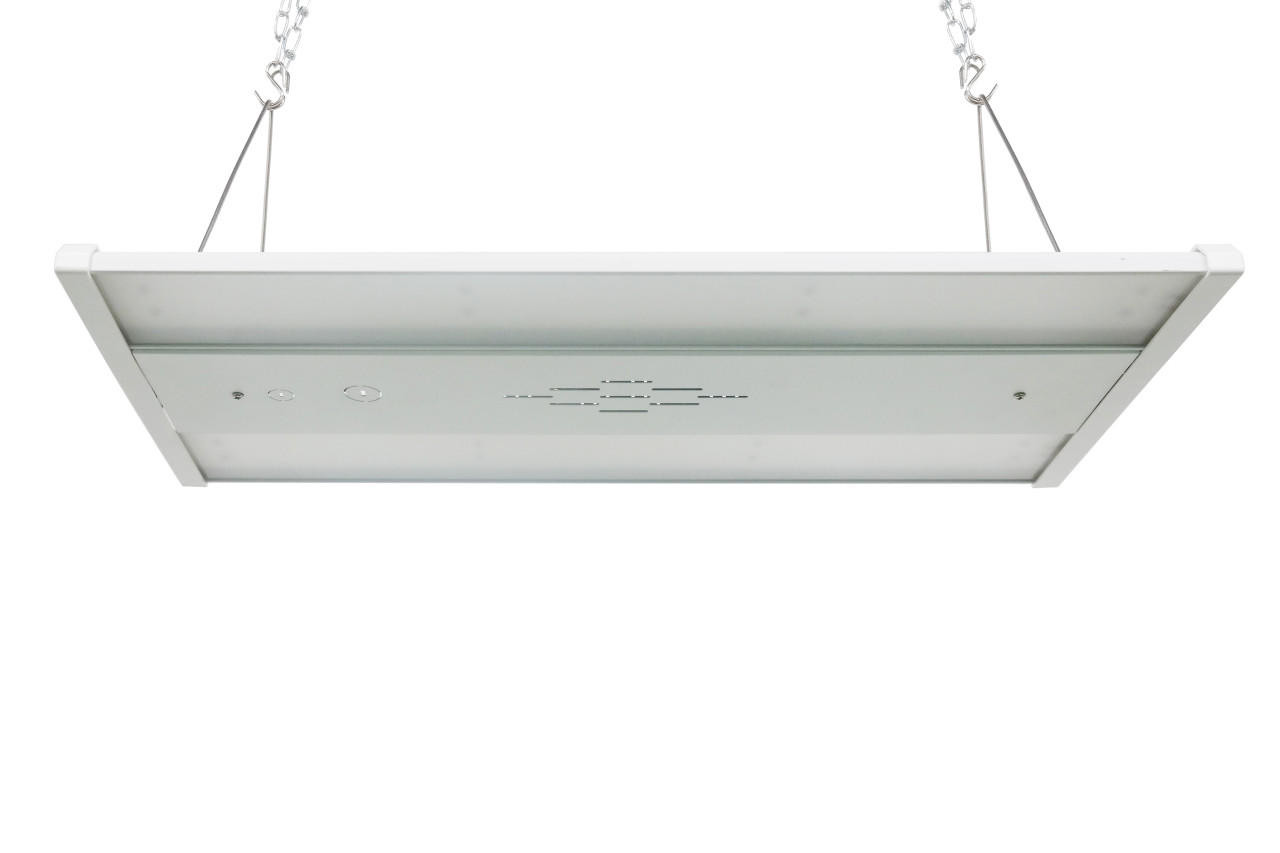

LFX/HB/2'/110W/50K Industrial 2' Linear High Bay LED For Warehouses And Workshops | Daylight (5000 K) With 0-10V Dimming
Designed for industrial and commercial ceilings, this 2' linear high bay delivers bright Daylight illumination while reducing maintenance and energy costs. The robust aluminum and iron housing with plastic lens supports surface or pendant mounting, and onboard 0-10V dimming lets you adjust light levels for task-specific control.
KEY FEATURES:
- High Output: 14,850 lumens from 110W for powerful indoor illumination.
- Daylight Quality: 5000K color temperature with 80 CRI for accurate color rendering.
- Long Life: Rated for 50,000 hours to minimize replacements and upkeep.
- Dimmable: 0-10V low-voltage dimming (100–10%) compatible with standard low-voltage controllers.
- Versatile Mounting: Surface, circular pipe, or pendant mounting (pendant kit not included).
- Durable Construction: Aluminum and iron housing with plastic lens in white finish.
- Listings & Protection: UL Listed for damp locations, DLC Premium, IP40 rated.
- Universal Voltage: Works on 120-277V electrical systems.
APPLICATIONS:
- Ideal for warehouses and distribution centers.
- Perfect for commercial garages and maintenance bays.
- Well suited to workshops, factories, and indoor industrial spaces.
- Tip: Pair with 0-10V controls to optimize light levels and save energy.
SPECIFICATIONS:
- Wattage: 110W
- Lumens: 14,850
- Color Temperature: 5000K
- CRI: 80
- Voltage: 120-277V
- Dimmable: Yes, 0-10V
- LED Chip: SMD2835
- Beam Angle: 90°
- Material: Aluminum & Iron
- Lens Material: Plastic
- IP Rating: IP40
- Dimensions: 23.68" L x 11.56" W x 2.10" D
- Ambient Temp Range: -4°F to 122°F
- Lifespan: 50,000 hours
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Listed - Damp Location
- DLC: Yes, DLC Premium (PLAXX9R2OQAW)
- Compliance: RoHS Compliant; Mercury Free
- Warranty: 5-year limited warranty
