Description

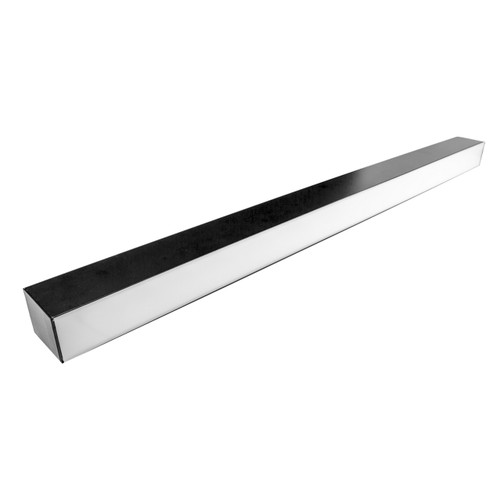

Low-Profile 4-Foot Architectural Strip For Suspended And Continuous Runs | CCT Selectable | 0-10V Dimmable Control For Commercial Spaces
Deliver refined, energy-efficient illumination with a slim-profile TCP architectural strip that simplifies continuous runs and suspended layouts. The ARC4UZDA4CCT combines on-site CCT selection and 0-10V dimming to speed installs, reduce inventory, and lower long-term maintenance needs in commercial interiors.
KEY FEATURES:
- On-Site Tunable Light: CCT selectable options allow installers to match existing fixtures or finalize color in the field for consistent interiors.
- Smooth Dimming Control: Standard 0-10V driver provides continuous dimming for daylighting and energy management systems.
- Continuous & Suspended Runs: Designed for end-to-end linking and suspended mounting to create seamless illumination across long spans.
- Contractor-Friendly: Fast coupler link and included mounting accessories reduce install time and labor.
- Long Life: Designed for extended service life to cut relamp frequency and maintenance costs.
APPLICATIONS:
- Lobby and reception areas
- Meeting rooms and conference centers
- Open offices and corridors
- Tip: Use CCT selection during installation to match adjacent fixtures and ensure uniform color across the project.
SPECIFICATIONS:
- Form Factor: 4-Foot LED Architectural Strip
- Color: CCT Selectable
- Wattage: 40W
- Lumens: 3000
- Voltage: 120-277V
- Dimming: 0-10V (standard)
- Rated Life: 50000 hours
- Options On This SKU: CCT Selectable; 0-10V Dimming; 120-277V Universal Input
