Description

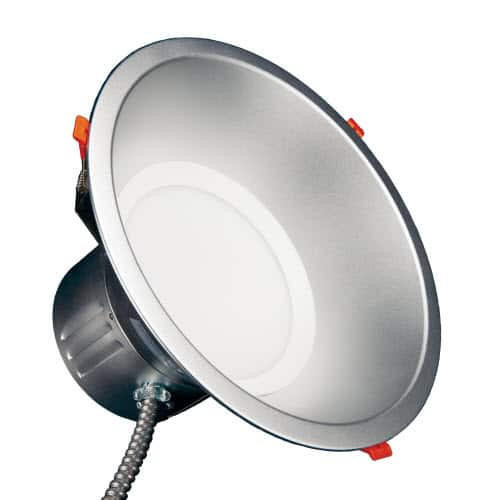

12-Inch LED Downlight Retrofit | CCT & Wattage Adjustable | Diffuser Lens
Upgrade large retail, healthcare, or industrial spaces with this TCP 12" commercial downlight, featuring selectable color temperature and wattage for maximum site versatility. The integrated diffuser version ensures widespread, uniform illumination that outperforms many traditional CFL or HID can lights, while also lowering ongoing maintenance demands.
KEY FEATURES:
- Ultimate Flexibility: Five selectable color temperatures (ranging from warm to bright daylight) and three wattage settings allow onsite customization for any lighting requirement.
- Diffuse, Uniform Output: Integrated diffuser lens delivers evenly distributed, low-glare illumination for large areas.
- Labor-Saving Design: Direct ceiling mounting and integrated trim eliminate the need for recessed cans, speeding up installation.
- Energy Saving: Choose the most efficient wattage on demand (18W, 23W, or 30W) to balance brightness and energy costs.
- Long Lasting: Rated for up to 50,000 hours to minimize replacements and disruptions in busy environments.
APPLICATIONS:
- Perfect for open retail floors, medical facilities, and industrial bays needing broad, even light distribution.
- Ideal for drop ceilings or direct-mount scenarios where fast installation and minimal maintenance are priorities.
- Maximize energy savings by selecting the lowest effective wattage and matching the color temperature to occupant needs.
SPECIFICATIONS:
- Wattage: 18W / 23W / 30W (Selectable)
- Lumens: 1800 / 2250 / 2850 (at 2700K, 2250K, 2850K) and 1850 / 2300 / 2950 (at 5000K)
- Color Temperature: 2700K, 3000K, 3500K, 4100K, 5000K (Selectable)
- CRI: 80
- Voltage: 120-277V
- Dimming: 0-10V
- Lens Type: Diffuser
- Diameter: 13 in
- Lifespan: 50,000 hours
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Approved
- Location Rating: Suitable for damp locations
- RoHS Compliant
