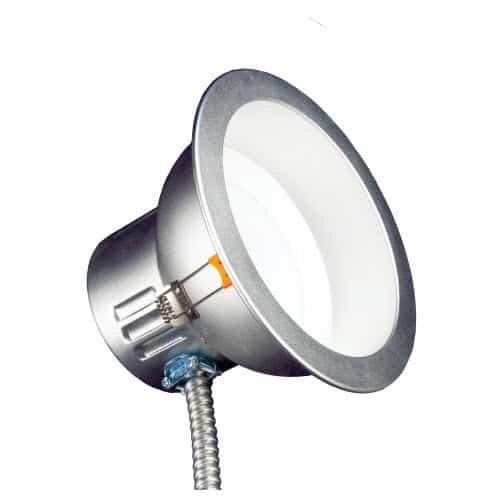

TCP DLC4SWUZDLCCT2 - 4" LED Downlight Diffuser - CCT Selectable - 3 Wattages

4-Inch Commercial LED Downlight | Diffuser Version | CCT Selectable

Eliminate the hassle of choosing between multiple fixtures-this 4-inch TCP selectable commercial downlight delivers tailored lighting for modern workplaces, public facilities, and retail venues. Enjoy premium, flicker-free illumination plus a durable, shatter-resistant build, all while reducing on-site maintenance cycles and excess inventory.

KEY FEATURES:

• Fully Adjustable: Five selectable color temperatures and three wattage settings ensure perfect light for any application.
• Labor-Saving Install: Installs directly to the ceiling with integrated trim and snap clips-no recessed can needed.
• Superior Light Quality: Flicker-free performance and uniform output enhance visual comfort throughout the space.
• Enhanced Durability: Shatter-resistant construction handles demanding commercial settings.
• Lasting Value: 50,000-hour rated life dramatically lowers relamp and maintenance needs.

APPLICATIONS:

• Ideal for corridors, conference rooms, and patient care areas in healthcare environments.
• Recommended for retail displays, break rooms, and commercial lobbies where adaptable lighting is essential.
• Install in ceiling cutouts ranging from 5-6.2 inches for rapid retrofit projects-no can required.

SPECIFICATIONS:

• Wattage: 7W / 9W / 12W (Selectable)
• Lumens: 700-1300 (Depending on setting)
• Color Temperature: CCT Selectable (2700K, 3000K, 3500K, 4100K, 5000K)
• Input Voltage: 120-277V
• Dimming: 0-10V
• CRI: 80
• Beam Angle: 85°
• Lifespan: 50,000 hours
• Trim Diameter: 6.2 inches
• Min. Starting Temp: -22°F / -30°C

CERTIFICATIONS & ADDITIONAL NOTES:

• Certifications: UL Listed, RoHS Compliant
• Location Rating: Damp Location
• Warranty: 5 Years (see manufacturer for details)
• IC Rated: Direct contact with insulation approved
