Description

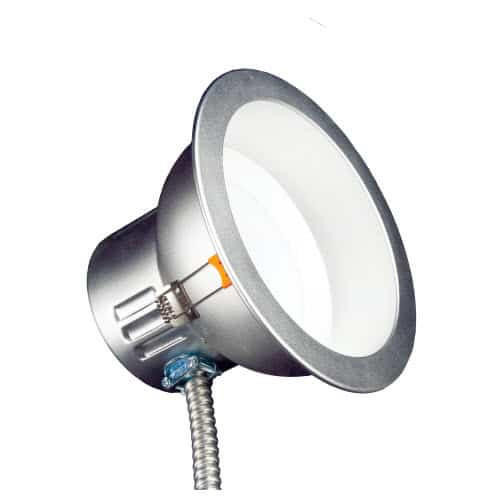

6" Selectable LED Commercial Downlight | CCT & Wattage Switch | Integrated Diffuser
Experience the flexibility and performance of the TCP DLC6SWUZDCCT2, engineered for fast installation and enhanced versatility across commercial settings. This innovative 6" LED recessed downlight provides a perfect upgrade for environments facing frequent relamping or the need to shift between color temperatures without fixture replacement, ensuring effortless adaptation to existing spaces or evolving tenant needs.
KEY FEATURES:
- Selectable Output: Choose from five color temperatures and three wattages on the fly for optimal comfort and efficiency.
- Integrated Diffuser: Boosts delivered lumens and creates even, glare-minimized lighting in work areas.
- Flicker-Free Illumination: Designed to ensure visual comfort for occupants in demanding commercial and retail environments.
- Fast Can‑Free Installation: Snap-clip mounting allows direct install in drywall or grid ceilings, no housing required.
- Energy & Maintenance Savings: Lasts up to 50,000 hours to reduce disruptions and overall facility costs.
APPLICATIONS:
- Excellent for open offices, medical facilities, and retail floor spaces needing adaptable lighting scenes.
- Well-suited to drop ceilings or sheetrock ceilings where speed of installation and layout flexibility are priorities.
- Tip: Use selectable CCT to tailor brightness for areas such as conference rooms or corridors.
SPECIFICATIONS:
- Wattage: 8W / 10W / 15W (Selectable)
- Lumens: 700-1500 (by wattage and CCT)
- Color Temperatures: 2700K / 3000K / 3500K / 4100K / 5000K (Selectable)
- Beam Angle: 85°
- CRI: 80
- Input Voltage: 120-277V
- Dimming: 0-10V
- Mounting: Snap clips, recessed (6" aperture)
- Lifespan: 50,000 hours
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Listed, RoHS Compliant
- Location Rating: Suitable for damp locations
- IC-Rated: Approved for contact with insulation
