Description
8-Inch Selectable Commercial LED Downlight | CCT & Wattage Adjustable

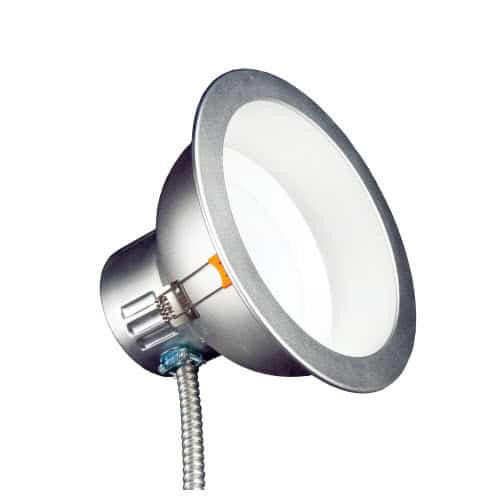

Upgrade commercial interiors with TCP's DLC8SWUZDLCCT LED downlight-a modern alternative to dated CFL or HID can lights. This fixture streamlines installations with direct-ceiling mounting and empowers you to fine-tune both color temperature and wattage on-site, ensuring optimal brightness and ambiance for any environment. Reduce maintenance headaches while delivering consistent, comfortable illumination that modern workspaces demand.
KEY FEATURES:
- Customizable Output: Easily select from three wattages and five color temperatures for tailored lighting.
- Smooth Dimming: 0-10V dimmable down to 5% for precision light control in multipurpose spaces.
- Quick Install: Integrated trim and snap clips mean no recessed can is required.
- Shatter Resistant: Durable lens design stands up to demanding applications.
- Consistent Lighting: Flicker-free technology enhances visual comfort in large areas.
- Long Life: Rated up to 50,000 hours, minimizing facility relamping cycles and labor costs.
APPLICATIONS:
- Perfect for retail aisles, hospital corridors, and industrial offices.
- Adapts seamlessly to varied ceiling heights and retrofit scenarios with CCT selection.
- Best installed where rapid installation and flexible lighting control are priorities.
SPECIFICATIONS:
- Wattage: 11W / 15W / 19W (Selectable)
- Color Temperature: 2700K / 3000K / 3500K / 4100K / 5000K (Selectable)
- Lumens: 1,397 - 2,365 (depending on settings)
- CRI: 80
- Beam Angle: 85°
- Voltage: 120-277V
- Dimmable: Yes (0-10V)
- Lifespan: 50,000 hours
- Trim Finish: Matte Silver
- Mounting: Direct ceiling mount, no can required
- Dimensions: 7.4" (MOL) x 9.2" (DIA)
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL Approved, RoHS Compliant
- Location Rating: Damp Location
- IC Rated: For direct contact with insulation
- Warranty: 5-year limited warranty
