Description

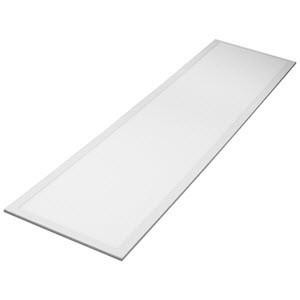

DTF1UZD2335K Slim Profile 1x4 LED Troffer Fixture | Neutral White 3500K Illumination | 3200 Lumen Back-Lit Design for Offices
Upgrade commercial ceiling lighting with the TCP DTF1UZD2335K, a back-lit 1x4 LED troffer engineered for high efficiency and visual comfort. Delivering 3500K neutral white light with uniform diffusion, it enhances workspaces while reducing energy consumption compared to fluorescent alternatives. The slim, lightweight design ensures quick installation into T-bar grid ceilings and consistent performance for years of reliable operation.
KEY FEATURES:
- Energy Savings: Consumes 29W while producing 3200 lumens, cutting utility costs compared to T8 or T12 systems.
- Uniform Illumination: Back-lit panel with frosted diffuser minimizes glare and ensures even light distribution.
- Long Service Life: Rated for 50,000 hours, reducing relamp cycles and ongoing maintenance needs.
- Dimming Control: Standard 0-10V dimming enables customized brightness for comfort and energy management.
- Reliable Build: IC rated, mercury-free construction with a robust housing for long-term durability.
APPLICATIONS:
- Perfect for office spaces requiring consistent, comfortable lighting.
- Well-suited for schools and classrooms to promote focus and reduce eye strain.
- Excellent in healthcare facilities where uniform illumination is critical.
SPECIFICATIONS:
- Wattage: 29W
- Lumens: 3,200
- Efficacy: >110 LPW
- Color Temperature: 3500K
- CRI: >80
- Voltage: 120–277V
- Dimensions: 1’ x 4’
- Lifespan: 50,000 hours
- Dimmable: 0–10V dimming (standard)
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL/cUL Listed, DLC 5.0 Standard
- Location Rating: Damp location, IC rated
- Warranty: 5-year limited warranty
