Description

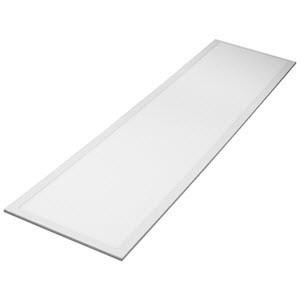

DTF1UZD3835KEB Back-Lit LED Troffer | Neutral White 3500K Illumination | Slim 1x4 Design with Selectable Wattage Options
Upgrade outdated fluorescent troffers with the TCP DTF1UZD3835KEB LED Direct Troffer. Designed for easy installation in standard T-bar ceilings, this back-lit fixture delivers smooth, uniform lighting with reduced glare. Its slim profile and wattage-selectable design provide flexibility for a range of commercial environments while lowering energy and maintenance costs.
KEY FEATURES:
- Flexible Output: Wattage selectable at 38W, 29W, or 23W for tailored brightness needs.
- Energy Savings: Replaces linear fluorescent troffers with significantly lower power consumption.
- Quality Illumination: Frosted diffuser ensures even light distribution and reduced glare.
- Durable Design: Slim, lightweight construction for quick installation in grid ceilings.
- Long Performance: Rated for 50,000 hours to minimize relamping and maintenance cycles.
APPLICATIONS:
- Perfect for offices, schools, and healthcare facilities needing reliable overhead lighting.
- Great choice for retail and hospitality spaces requiring neutral white illumination.
- Best used in T-bar grid ceilings where consistent light and low maintenance are priorities.
SPECIFICATIONS:
- Wattage: 23W / 29W / 38W (Selectable)
- Lumens: 2600 / 3200 / 4200
- Efficacy: >110 LPW
- Color Temperature: 3500K
- CRI: >80
- Voltage: 120-277V
- Shape: 1' x 4' Back-Lit Troffer
- Lifespan: 50,000 hours
- Dimmable: 0-10V Dimming
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL/cUL Listed, DLC 5.0 Standard
- Location Rating: Damp location rated, IC rated
- Warranty: 5-year limited warranty
