Description

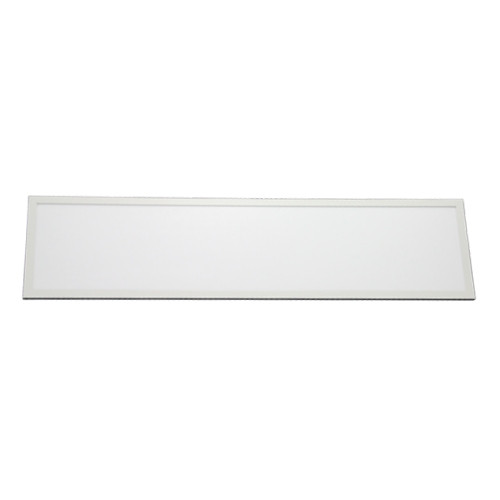

Low-Profile 1x4 LED Panel For T-Bar Grid Ceilings | CCT Selectable | Network Lighting Sensor For DLC Integration And Retrofits
Upgrade existing T-bar ceilings with a slim, backlit 1x4 panel that simplifies retrofits and reduces maintenance. The CCT selectable driver and network lighting sensor option let you standardize light color and enable centralized control for energy-saving performance.
KEY FEATURES:
- On-Site CCT Selection: Choose between selectable white options to match adjacent fixtures and occupant preferences.
- Network Sensor Ready: DLC Network Lighting Sensor (NLS) option supports centralized lighting management and zone control.
- Slim Backlit Design: Full-panel diffusion provides uniform, low-glare illumination ideal for commercial spaces.
- 0-10V Dimming Standard: Compatible with common dimming systems for smooth light level control and energy savings.
- Contractor-Friendly: Lightweight, T-bar drop-in installation reduces labor time on retrofits and new builds.
APPLICATIONS:
- Office spaces and corridors
- Retail stores and showrooms
- Schools and classrooms
- Tip: Use CCT selection to harmonize color temperature across phased installations.
SPECIFICATIONS:
- Form Factor: 1x4 LED Direct Troffer / Flat Panel
- Lens: Frosted Backlit Diffuser
- Color: CCT Selectable
- Wattage: Selectable (36W / 26W / 18W)
- Lumens: Selectable (4200 / 3400 / 2600 L)
- Voltage: 120-277V
- Dimming: 0-10V standard
- Rated Life: 50,000 hours
- Listings: UL/cUL Damp Location Rated; IC Rated; IP20
- Warranty: Five year limited warranty
- Options On This SKU: DLC Network Lighting Sensor (NLS); CCT Selectable
