Description

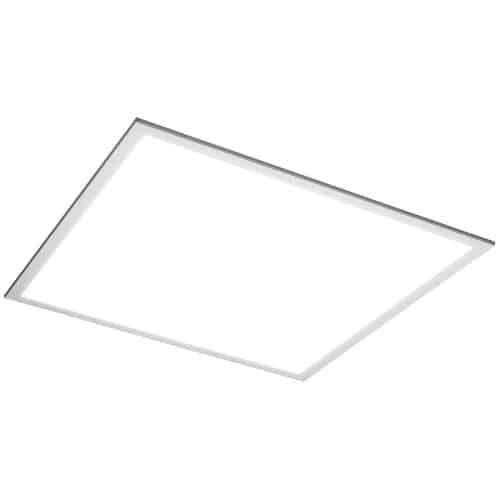

DTF2UZD2930KEB 2x2 LED Direct Troffer Fixture | Warm White 3000K Illumination | Wattage Selectable Back-Lit Panel for Offices and Schools
Upgrade outdated fluorescent ceiling fixtures with the TCP DTF2UZD2930KEB LED Direct Troffer. This 2x2 back-lit luminaire delivers uniform warm white light with a sleek, low-profile design that fits standard T-bar grid ceilings. Its wattage selectable feature provides installation flexibility while reducing energy consumption and long-term maintenance costs.
KEY FEATURES:
- Wattage Selectable: Adjustable between 23W, 29W, or 38W to optimize brightness and energy savings.
- Uniform Illumination: Back-lit frosted diffuser reduces glare while maintaining consistent light distribution.
- Energy Efficient: Provides over 110 lumens per watt for cost-effective lighting performance.
- Long Life: Rated for 50,000 hours, minimizing replacement and labor expenses.
- Integrated Dimming: 0-10V dimming compatibility supports advanced lighting controls.
APPLICATIONS:
- Perfect for offices, classrooms, and retail ceiling grids seeking efficient LED upgrades.
- Reliable option for healthcare and hospitality facilities requiring low-glare illumination.
- Best used in standard 2’x2’ T-bar ceiling applications where uniform lighting is critical.
SPECIFICATIONS:
- Wattage: 23W / 29W / 38W (Selectable)
- Lumens: 2600 / 3200 / 4200
- Efficacy: >110 LPW
- Color Temperature: 3000K
- CRI: >80
- Voltage: 120-277V
- Beam Angle: 120°
- Lifespan: 50,000 hours
- Dimmable: 0-10V
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL/cUL Listed
- Location Rating: Damp location rated, IC rated
- Compliance: RoHS Compliant, DLC 5.0 Standard
- Warranty: 5-year limited warranty
