Description

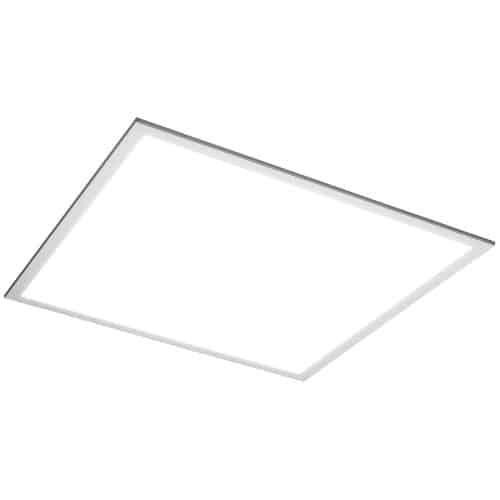

DTF2UZD2941KEB 2x2 Back-Lit LED Troffer Fixture | Neutral White 4100K Light | Ideal Office, School, and Healthcare Ceiling Panel
Upgrade outdated fluorescent ceiling lights with the TCP DTF2UZD2941KEB. This 2x2 LED direct troffer provides uniform, neutral white illumination with a slim back-lit design that enhances visual comfort while cutting energy and maintenance costs. Engineered for drop ceilings, it delivers reliable performance in demanding commercial spaces.
KEY FEATURES:
- High Efficiency: Produces up to 3200 lumens with over 110 LPW performance.
- Visual Comfort: Frosted diffuser reduces glare and distributes light evenly across spaces.
- Easy Retrofit: Slim, lightweight design installs quickly into standard T-bar ceilings.
- Dimming Capability: Standard 0-10V dimming allows smooth brightness control.
- Low Maintenance: Rated for 50,000 hours to reduce replacement and upkeep costs.
APPLICATIONS:
- Ideal for offices, classrooms, and healthcare facilities needing consistent neutral white light.
- Perfect for drop ceiling grids in retail and hospitality environments.
- Best suited for spaces seeking energy-efficient replacements for T8 and T12 troffers.
SPECIFICATIONS:
- Wattage: 29W
- Lumens: 3,200
- Efficacy: >110 LPW
- Color Temperature: 4100K
- CRI: >80
- Voltage: 120–277V
- Beam Angle: 120°
- Lifespan: 50,000 hours
- Dimmable: 0–10V
- Shape: 2' x 2' Back-Lit Troffer
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL/cUL Listed
- Location Rating: Damp Location Rated, IC Rated
- Compliance: RoHS Compliant, DLC 5.0 Standard
- Warranty: 5-year limited warranty
