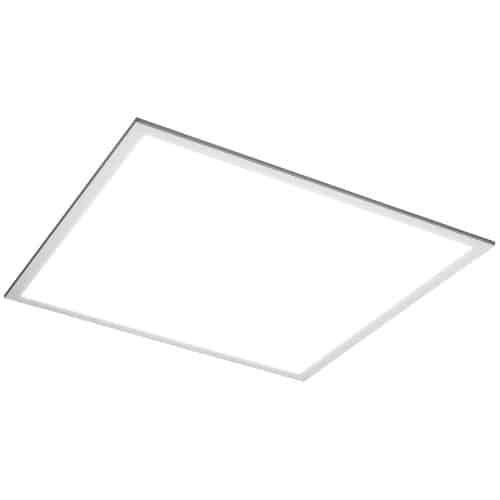

DTF2UZD2950KEB LED Back-Lit Troffer Fixture | Bright 5000K Cool Daylight | Wattage Selectable 23W/29W/38W for Offices and Schools
Upgrade your ceiling lighting with the TCP DTF2UZD2950KEB, a versatile 2x2 LED Direct Troffer designed to replace outdated fluorescent systems. Its back-lit technology delivers full panel diffusion with uniform light output, while the selectable wattage feature ensures flexibility to meet varying brightness needs. With its slim profile and easy installation, this luminaire is ideal for cost-effective upgrades across multiple environments.
KEY FEATURES:
- Customizable Output: Wattage selectable between 23W, 29W, and 38W for adaptable light levels.
- Superior Uniformity: Back-lit design with frosted diffuser ensures low-glare, evenly distributed light.
- Energy Efficient: Provides over 110 lumens per watt to maximize energy savings and utility rebates.
- Reliable Longevity: Rated for 50,000 hours to minimize maintenance cycles and costs.
- Dimming Control: Standard 0–10V dimming supports advanced lighting control systems.
APPLICATIONS:
- Perfect for office ceilings, offering bright, flicker-free task lighting.
- Well-suited for school classrooms requiring consistent illumination for learning environments.
- Ideal for healthcare and retail spaces where uniform lighting enhances comfort and visibility.
SPECIFICATIONS:
- Wattage: 23W / 29W / 38W (Selectable)
- Lumens: 2600 / 3200 / 4200
- Efficacy: >110 LPW
- Color Temperature: 5000K
- CRI: >80
- Voltage: 120–277V
- Shape: 2' x 2' Back-Lit Troffer
- Lifespan: 50,000 hours
- Dimmable: 0–10V
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL/cUL Listed, RoHS Compliant
- Location Rating: Damp Location, IC Rated
- Warranty: 5-year limited warranty
