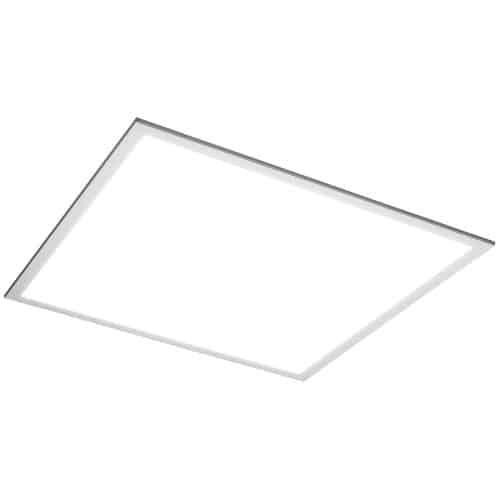

DTF2UZD29CCT Energy-Saving 2x2 LED Troffer Fixture | Switchable White 3500K-5000K | Slim Backlit Panel with 0-10V Dimming
The TCP DTF2UZD29CCT delivers a modern upgrade for outdated fluorescent troffers, combining high efficiency with selectable white light. Its slim, backlit design ensures full panel diffusion and uniform brightness, making it ideal for commercial drop ceilings while lowering maintenance and energy costs.
KEY FEATURES:
- Selectable Color: Switchable between 3500K, 4100K, and 5000K for tailored lighting environments.
- Energy Efficient: Consumes just 29W while delivering up to 3200 lumens for significant power savings.
- Modern Design: Slim, low-profile housing ensures easy integration into existing ceiling grids.
- Dimmable Control: Standard 0-10V dimming driver provides flexible light adjustment.
- Extended Lifespan: Rated for 50,000 hours to reduce replacement and labor costs.
APPLICATIONS:
- Perfect for office spaces requiring consistent, glare-free light.
- Ideal for classrooms and educational facilities with long operating hours.
- Great for healthcare or retail settings needing reliable, low-maintenance illumination.
SPECIFICATIONS:
- Wattage: 29W
- Lumens: 2,600–3,200
- Efficacy: >110 LPW
- Color Temperature: 3500K/4100K/5000K Selectable
- CRI: >80
- Voltage: 120-277V
- Shape: 2x2 Troffer
- Lifespan: 50,000 hours
- Dimmable: 0-10V
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL/cUL Listed
- Location Rating: Damp Location, IC Rated
- Compliance: RoHS Compliant, DLC 5.1 Standard
- Warranty: 5-year limited warranty
