Description

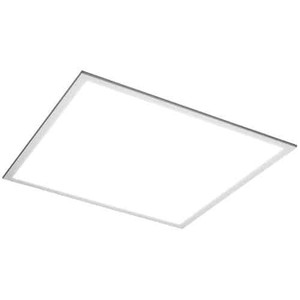

DTF2UZD3830K High-Efficiency 2x2 LED Direct Troffer | Warm White Illumination | Wattage Selectable 23W/29W/38W Fixture
The TCP DTF2UZD3830K LED Direct Troffer delivers a modern solution for upgrading outdated fluorescent ceiling lights. Designed with back-lit technology and a slim, low-profile frame, it provides smooth, uniform illumination while offering long-lasting performance and significant energy savings. Perfect for offices, schools, healthcare, and retail, this fixture enhances visual comfort with reduced glare and consistent warm white output.
KEY FEATURES:
- Energy Savings: Reduces consumption with selectable 23W, 29W, or 38W operation.
- Superior Illumination: Back-lit design ensures uniform light across the entire panel.
- Comfortable Lighting: Frosted diffuser minimizes glare and enhances visual comfort.
- Durable Build: Rated for 50,000 hours, minimizing maintenance needs over time.
- Dimmable Control: Standard 0-10V dimming supports adaptable lighting environments.
APPLICATIONS:
- Ideal for offices, classrooms, and healthcare facilities.
- Perfect for retail and hospitality environments requiring long-lasting ceiling lighting.
- Best used in T-bar grid ceilings where smooth, even illumination is critical.
SPECIFICATIONS:
- Wattage: 23W / 29W / 38W (Selectable)
- Lumens: 2600 / 3200 / 4200
- Efficacy: >110 LPW
- Color Temperature: 3000K
- CRI: >80
- Voltage: 120-277V
- Beam Angle: 120°
- Lifespan: 50,000 hours
- Dimmable: 0-10V
- Size: 2’ x 2’
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL/cUL Listed
- Location Rating: Damp location, IC rated
- Compliance: RoHS, DLC 5.0 Standard
- Warranty: 5-year limited warranty
