Description

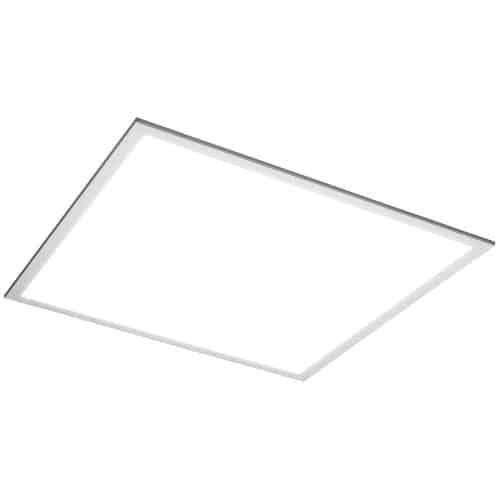

DTF2UZD3835KEB LED 2x2 Back-Lit Troffer Fixture | Neutral White 3500K Illumination | Wattage Selectable Design for Offices and Schools
Upgrade traditional fluorescent troffers with the TCP DTF2UZD3835KEB, a high-performance LED solution designed for energy efficiency and superior uniformity. Featuring wattage-selectable technology, this 2x2 back-lit panel allows flexible output while delivering consistent neutral white 3500K light ideal for professional environments.
KEY FEATURES:
- Flexible Performance: Wattage selectable to 38W, 29W, or 23W for tailored lumen output.
- Energy Saving: Consumes significantly less energy compared to T8 and T5 fluorescent systems.
- Consistent Illumination: Back-lit technology with frosted diffuser ensures even light distribution.
- Long-Lasting: Rated for 50,000 hours to reduce replacement frequency and maintenance costs.
- Dimming Capability: Standard 0-10V dimming for adaptable lighting control.
APPLICATIONS:
- Perfect for office ceilings requiring reliable, low-glare illumination.
- Suitable for retail stores aiming to create uniform, inviting lighting conditions.
- Great for educational facilities seeking low-maintenance and efficient lighting.
SPECIFICATIONS:
- Wattage: 23W / 29W / 38W (selectable)
- Lumens: 2600 / 3200 / 4200
- Efficacy: >110 LPW
- Color Temperature: 3500K
- CRI: >80
- Voltage: 120-277V
- Beam Angle: 120°
- Lifespan: 50,000 hours
- Dimmable: 0-10V dimming
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL/cUL Listed, IC Rated, RoHS Compliant
- Location Rating: Suitable for damp locations
- Warranty: 5-year limited warranty
