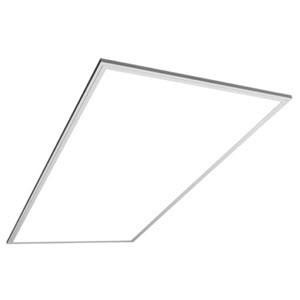

DTF4UZD3950K Back-Lit 2x4 LED Troffer Fixture | Crisp Daylight 5000K Illumination | Uniform Panel Diffusion for Offices and Schools
Upgrade your lighting with the TCP DTF4UZD3950K, a high-efficiency 2x4 LED troffer designed to replace outdated fluorescent systems. Featuring back-lit technology with superior uniformity, this fixture delivers crisp daylight brightness while reducing energy consumption and maintenance costs. Its slim, low-profile frame makes it ideal for modern commercial ceilings.
KEY FEATURES:
- Uniform Illumination: Back-lit technology ensures full panel diffusion with minimal glare.
- Energy Savings: Uses just 46W while producing up to 5100 lumens of bright daylight output.
- Long-Lasting: Rated for 50,000 hours, significantly lowering replacement frequency.
- Dimmable Control: Standard 0-10V dimming supports customizable lighting levels.
- Durable Build: Slim, lightweight frame with frosted diffuser for modern aesthetics.
APPLICATIONS:
- Perfect for offices seeking efficient, low-glare ceiling lighting.
- Great choice for classrooms and educational facilities needing reliable brightness.
- Works well in healthcare and retail spaces requiring consistent, uniform light.
SPECIFICATIONS:
- Wattage: 46W (Selectable down to 39W/29W)
- Lumens: 5100
- Efficacy: >110 LPW
- Color Temperature: 5000K
- CRI: >80
- Voltage: 120-277V
- Beam Angle: 120°
- Lifespan: 50,000 hours
- Dimmable: 0-10V
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL/cUL Listed, DLC 5.0 Standard
- Location Rating: Damp location rated, IC rated
- Warranty: 5-year limited warranty
