Description

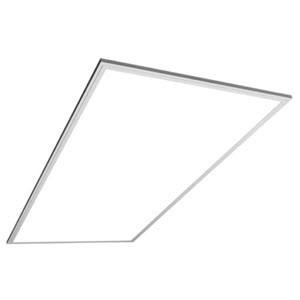

DTF4UZD4630K 2x4 Back-Lit LED Troffer Fixture | Warm White 3000K Ceiling Panel | Offices, Retail Stores, Schools, and Healthcare
The TCP DTF4UZD4630K is a high-performance LED direct troffer designed to replace outdated fluorescent lighting systems. Its slim back-lit construction ensures uniform diffusion across the panel, delivering consistent warm white illumination while lowering energy use and reducing maintenance cycles.
KEY FEATURES:
- High Output: Produces 5100 lumens with just 46W power consumption for bright, efficient illumination.
- Even Diffusion: Back-lit frosted lens minimizes glare and provides smooth light distribution.
- Extended Lifespan: Rated for 50,000 hours to reduce replacement costs and downtime.
- Dimmable Control: Standard 0-10V dimming enables customized brightness for any environment.
- Streamlined Installation: Lightweight design drops easily into standard 2’x4’ T-grid ceilings.
APPLICATIONS:
- Ideal for offices seeking efficient warm lighting for productive workspaces.
- Perfect for classrooms and schools requiring reliable, low-maintenance ceiling fixtures.
- Well-suited for healthcare and retail environments needing consistent, uniform lighting.
SPECIFICATIONS:
- Wattage: 46W
- Lumens: 5100
- Efficacy: >110 LPW
- Color Temperature: 3000K
- CRI: >80
- Voltage: 120-277V
- Beam Angle: 120°
- Lifespan: 50,000 hours
- Dimmable: 0-10V Dimming
- Shape: 2’x4’ Back-Lit Direct Troffer
CERTIFICATIONS & ADDITIONAL NOTES:
- Safety Certifications: UL/cUL Listed
- Location Rating: Damp location rated
- IC Rating: IC Rated
- Ingress Protection: IP20
- Compliance: RoHS Compliant, DLC 5.0 Standard
- Warranty: 5-year limited warranty
