Description
Selectable LED UFO High Bay Fixture | 25,500-40,500 Lumens | 120-277V | 0-10V Dimming | Color Select

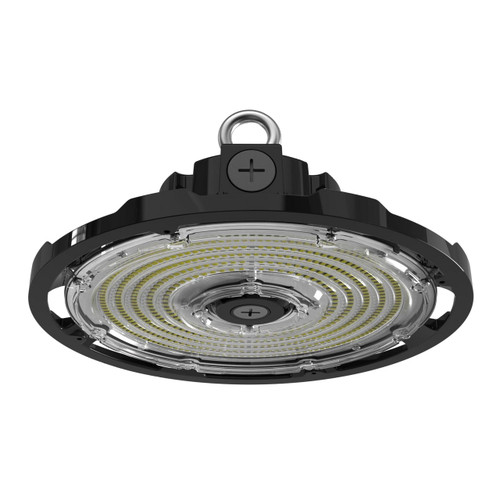

TCP EUFOUZDSW6CCT is a Select Series Elite LED UFO high bay fixture built for warehouses, commercial facilities, gyms, retail spaces, schools, and open ceiling applications. This black die-cast aluminum high bay features selectable 150W, 200W, or 240W power settings, selectable 4000K or 5000K color temperature, up to 40,500 lumens, 120-277V operation, 0-10V dimming, an IP65 wet location rating, and an IK10 impact resistant lens.
Product Specifications
- Brand: TCP
- Model Number: EUFOUZDSW6CCT
- Series: Select Series Elite UFO High Bay
- Fixture Type: LED UFO high bay luminaire
- Wattage Selectable: 150W / 200W / 240W
- Lumen Output: 25,500 / 32,000 / 40,500 lumens
- Color Temperature: 4000K / 5000K selectable
- Color Description: Cool White / Daylight
- Voltage: 120-277V
- Dimming: 0-10V dimming
- Rated Life: 50,000 hours
- Efficacy: Up to 165 LPW
- Housing: Die-cast aluminum
- Finish: Black powder coat
- Lens: Clear acrylic lens
- Impact Rating: IK10
- Location Rating: IP65 wet location rated
- Listings: UL and cUL listed
- Power Cord: 6 ft power cord
- Mounting: Hangs from included eye bolt
- Operating Temperature: -20C to 50C
- Approximate Diameter: 13.4"
- Height with Eyebolt: 6.5"
- Fixture Depth: 4.7"
- Sensor Included: No
- Warranty: 5 year limited warranty
Benefits
- Selectable wattage lets contractors choose 150W, 200W, or 240W in the field.
- Selectable 4000K or 5000K color temperature supports different jobsite lighting preferences.
- Delivers up to 40,500 lumens for high-output warehouse and commercial high bay applications.
- 0-10V dimming supports compatible lighting control systems.
- IP65 wet location rating allows use in demanding indoor or covered industrial environments.
- IK10 impact resistant lens helps protect the fixture in active commercial spaces.
- Die-cast aluminum housing with black powder coat finish provides durable construction.
- Included eye bolt supports standard suspended high bay installation.
Applications
- Warehouses
- Distribution centers
- Commercial facilities
- Retail stores
- Schools
- Municipal buildings
- Field houses
- Gymnasiums
- Open ceiling designs
- Open aisles and stock aisles
Downloads
Disclaimers
*Typically ships within 2-3 business days. Lead times are estimates and may vary based on quantity and availability.
