Clear Retrofit 100W Metal Halide Replacement | 120-277V | E26 Base E39 Adapter | Daylight

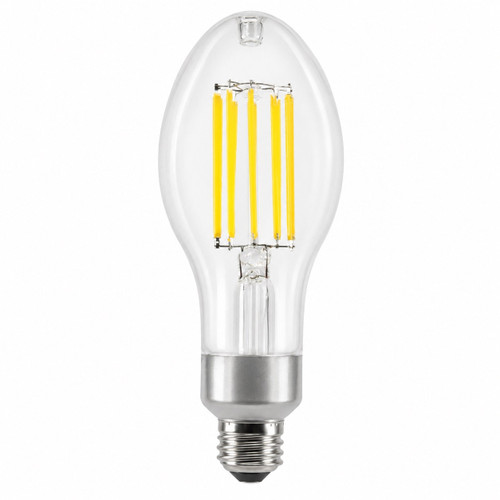

TCP FED23N10050E26CL is a high lumen ED23 LED filament lamp designed to replace a 100W HID metal halide lamp in compatible high bay, low bay, bollard, wall pack, and commercial lighting applications. This clear LED HID replacement bulb uses 24W, produces 4000 lumens, operates on 120-277V, delivers a 360 degree beam angle, and features 5000K daylight color temperature with an E26 base and included E39 adapter.
Product Specifications
- Brand: TCP
- Model: FED23N10050E26CL
- Product Type: High lumen LED filament HID replacement lamp
- Shape: ED23
- Finish: Clear
- Wattage: 24W
- HID Replacement: 100W
- Lumen Output: 4000 lumens
- Luminous Efficacy: 166.7 LPW
- Color Temperature: 5000K
- Color Appearance: Daylight
- CRI: 80
- Base: E26
- Adapter: Includes E39 adapter
- Voltage: 120-277V
- Beam Angle: 360 degrees
- Burn Position: Universal
- Application Type: Ballast bypass
- Ballast Required: No
- Enclosed Fixture Rated: Yes
- Location Rating: Wet location
- Power Factor: Greater than 0.9
- Rated Life: 50,000 hours
- Minimum Starting Temperature: -40 F
- Maximum Operating Temperature: 149 F
- MOL: 7.6 inches
- Diameter: 3.00 inches
- Weight: 0.35 lbs
- Case Quantity: 12
- Warranty: 5 years
- Compliance: RoHS compliant
Benefits
- Replaces a 100W HID metal halide lamp while using only 24W.
- Clear ED23 filament design fits many existing HID-style fixtures.
- Ballast bypass operation eliminates the need for a ballast after proper rewiring.
- 120-277V input supports a wide range of commercial and industrial applications.
- 360 degree beam angle provides broad light distribution.
- Universal burn position allows flexible installation in approved fixtures.
- Can be used in open or enclosed fixtures.
- Wet location rating supports use in approved indoor and outdoor applications.
- Includes E39 adapter for added socket compatibility.
- Instant start operation provides light immediately when powered on.
Applications
- High bay fixtures
- Low bay fixtures
- Wall packs
- Bollards
- Parking structures
- Warehouses
- Industrial lighting
- Large retail facilities
- Gymnasiums
- Large public areas
- Outdoor area lighting
- Pathway lighting
Installation Notes
- This is a ballast bypass lamp.
- The existing ballast must be bypassed or removed before installation.
- Installation should be completed by a qualified electrician.
- Verify fixture size, socket type, voltage, and wiring compatibility before ordering.
FAQ
What does the TCP FED23N10050E26CL replace?
The TCP FED23N10050E26CL is designed to replace a 100W HID metal halide lamp in compatible fixtures.
How many lumens does this ED23 LED lamp produce?
This lamp produces 4000 lumens while using 24W.
Does this lamp require a ballast?
No. This is a ballast bypass lamp, so the existing ballast must be bypassed or removed before installation.
What base does this lamp use?
This lamp has an E26 base and includes an E39 adapter for compatible mogul socket applications.
Can this lamp be used in enclosed fixtures?
Yes. TCP lists this high lumen LED filament lamp as suitable for enclosed fixtures.
Is this lamp wet location rated?
Yes. This lamp is wet location rated for approved applications.
What color temperature is this lamp?
This lamp is 5000K daylight.
