Clear 150W Metal Halide Replacement LED Lamp | 5000 Lumens | 120-277V | E39 Mogul Base | Daylight

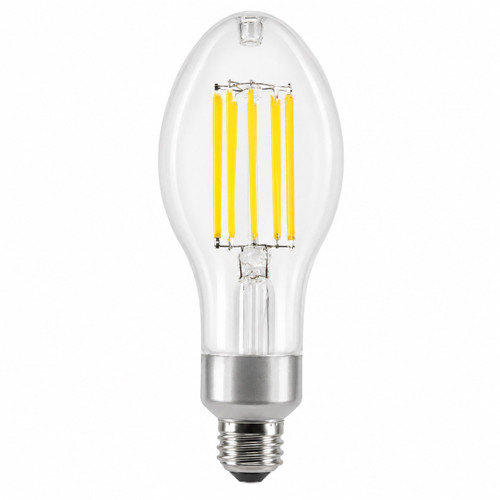

TCP FED23N15050E39CL is a 26W clear ED23 LED filament HID replacement lamp designed to replace 150W metal halide lamps in compatible high bay, low bay, wall pack, bollard, parking structure, warehouse, industrial, and large area lighting applications. This clear retrofit lamp operates on 120-277V after ballast bypass, delivers 5000 lumens, produces 5000K daylight light, uses an E39 mogul base, and supports enclosed fixtures, wet locations, and universal burn position installations.
Product Specifications
- Brand: TCP
- Model Number: FED23N15050E39CL
- Product Type: LED filament HID replacement lamp
- Lamp Shape: ED23
- Lamp Finish: Clear
- Wattage: 26W
- HID Replacement: 150W metal halide
- Voltage: 120-277V
- Installation Type: Ballast bypass
- Base Type: E39 mogul base
- Lumen Output: 5000 lumens
- Efficacy: 192.3 lumens per watt
- Color Temperature: 5000K
- Descriptive Color: Daylight
- CRI: 80
- Beam Angle: 360 degree
- Burn Position: Universal burn position
- Enclosed Fixture Rated: Yes
- Location Rating: Wet location rated
- Rated Life: 50,000 hours
- Minimum Starting Temperature: -40C / -40F
- Maximum Operating Temperature: 65C / 149F
- Power Factor: Greater than 0.9
- Maximum Overall Length: 7.6 inches
- Diameter: 3.0 inches
- Weight: 0.35 lb
- Case Quantity: 12
- Compliance: RoHS compliant
- Warranty: 5 years
Benefits
- Replaces 150W metal halide HID lamps while using only 26W.
- E39 mogul base fits compatible HID-style sockets without needing a separate adapter.
- 5000 lumen output provides strong brightness for commercial and exterior retrofit applications.
- 5000K daylight color supports crisp visibility in warehouses, parking areas, wall packs, and security lighting.
- Ballast bypass design removes the existing HID ballast from the circuit.
- 120-277V input supports common commercial and industrial voltages.
- Clear ED23 filament design maintains the classic HID lamp appearance in compatible fixtures.
- 360 degree beam angle helps provide broad omni-directional light distribution.
- Wet location and enclosed fixture ratings support a wide range of indoor and outdoor installations.
- 50,000 hour rated life helps reduce maintenance compared to traditional HID lamps.
Applications
- 150W metal halide replacement
- HID retrofit projects
- High bay fixtures
- Low bay fixtures
- Wall packs
- Bollards
- Parking structures
- Warehouses
- Industrial lighting
- Large retail facilities
- Gymnasiums
- Outdoor area lighting
- E39 mogul base retrofit applications
