Description
Replacement 400W HID LED Lamp | 60W | Type B Ballast Bypass | 120–277V | Daylight | High Bay & Outdoor Retrofit

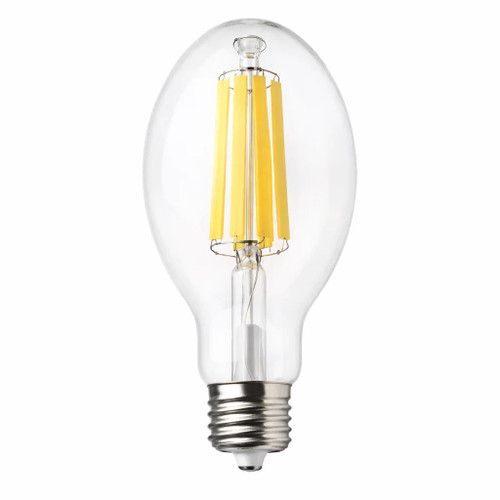

TCP FED37N40050E39CL is a high-lumen ED37 LED filament lamp engineered as a direct replacement for 400W metal halide HID lamps. This ballast bypass (Type B) LED retrofit operates on 120–277V line voltage and delivers 11,000 lumens of 5000K daylight output with a true 360° beam. Designed for easy screw-in installation using an E39 base, it is suitable for open or enclosed fixtures and supports both vertical and horizontal burn positions—ideal for high bays, wall packs, and large outdoor fixtures.
Product Specifications
- Brand: TCP
- Model: FED37N40050E39CL
- Lamp Shape: ED37
- Wattage: 60W
- HID Replacement: 400W Metal Halide
- Lumen Output: 11,000 lumens
- Efficacy: 183.3 LPW
- Color Temperature: 5000K (Daylight)
- CRI: ≥80
- Base Type: E39 Mogul
- Voltage: 120–277V
- Operation Type: Type B – Ballast Bypass
- Beam Angle: 360°
- Burn Position: Universal
- Enclosed Fixture Rated: Yes
- Wet Location Rated: Yes
- Power Factor: >0.9
- Rated Life: 50,000 hours
- Length (MOL): 11.5 inches
- Diameter: 4.6 inches
- Warranty: 5-Year Limited
- Case Quantity: 6
Benefits
- Replaces 400W HID with over 75% energy savings
- Eliminates ballast failure and maintenance costs
- High-lumen output suitable for large-scale applications
- Instant-on performance with no warm-up time
- Lightweight design reduces fixture stress
- True HID-style form factor fits existing luminaires
Applications
- Warehouse and industrial high bays
- Parking garages and large outdoor areas
- Wall packs and area lights
- Gymnasiums and large public spaces
- Pathways and commercial exterior lighting
Downloads
FAQ
What replaces a 400W metal halide bulb?
A 60W LED filament HID replacement lamp is a direct replacement for a 400W metal halide bulb. It delivers comparable light output with far lower energy consumption and instant-on performance.
Do I need to remove the ballast when switching from metal halide to LED?
Yes. This is a Type B ballast bypass LED lamp, which means the existing ballast must be removed or bypassed so the lamp operates directly on line voltage.
Will a 400W metal halide LED replacement fit my existing fixture?
Most LED filament HID replacements are designed to match traditional HID lamp shapes and bases, allowing them to fit into existing high bay, wall pack, and area light fixtures.
Is an LED replacement bright enough to replace a 400W metal halide?
Yes. High-lumen LED filament replacements typically produce around 11,000 lumens, providing brightness comparable to a 400W metal halide without warm-up time.
Can this type of LED replacement be used in enclosed fixtures?
Yes. Many LED filament HID replacement lamps are rated for use in enclosed fixtures, but fixture compatibility should always be confirmed before installation.
