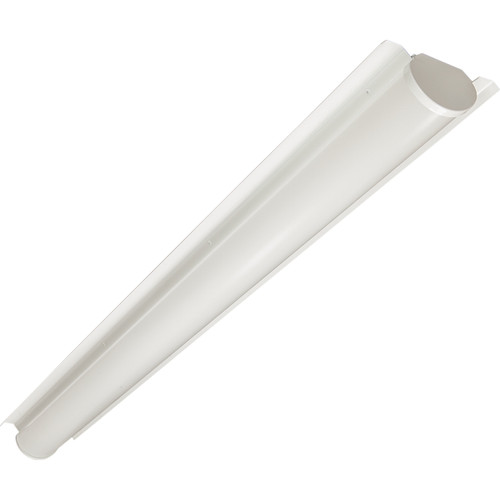

Low-Profile 4-Foot LED Retrofit Kit For Fluorescent Strips | CCT Selectable | Energy-Saving 0-10V Dimmable Commercial Upgrade
Replace fluorescent lamps and ballasts quickly with a low-profile TCP retrofit kit that delivers selectable CCT and configurable lumen/watt outputs to reduce energy use, simplify inventory, and cut maintenance downtime in commercial facilities.
KEY FEATURES:
- On-Site Tuning: CCT selectable 35/40/50K lets you match existing fixtures or standardize across spaces.
- Selectable Output: SW2 package offers multiple wattage/lumen steps for right-sized energy and light levels.
- Smooth Dimming: Standard 0-10V driver enables continuous dimming and integration with building controls.
- Universal Retrofit Fit: Designed to fit most 4.25" and 5.25" wide T8/T12 strip housings for fast installs.
- Durable Optics: Ribbed, frosted diffuser reduces glare while delivering uniform illumination.
APPLICATIONS:
- Warehouse aisles and storage areas
- Retail stock rooms and back-of-house spaces
- Manufacturing facilities and task lighting zones
- Tip: Use CCT selection to harmonize new fixtures with adjacent luminaires during phased upgrades.
SPECIFICATIONS:
- Form Factor: 4-Foot LED General Purpose Strip Retrofit Kit
- Color: CCT Selectable (35/40/50K)
- Wattage: SW2 Package (4 ft: 18/22/32W Selectable)
- Lumens: SW2 Package (4 ft: 2500/2900/4200L)
- Voltage: 120-277V
- Dimming: 0-10V (standard)
- Rated Life: >50,000 hours
- CRI: 80+
- Options On This SKU: 4-Foot; U (120-277V); ZD (0-10V Dimming); SW2 lumen/wattage package; CCT Selectable
